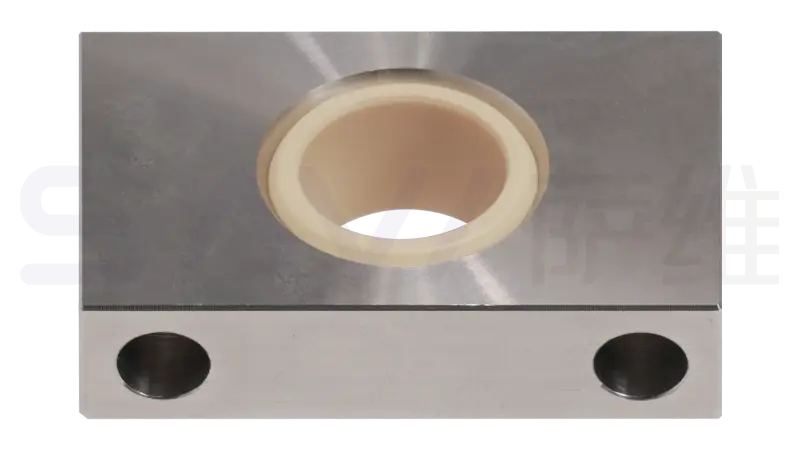

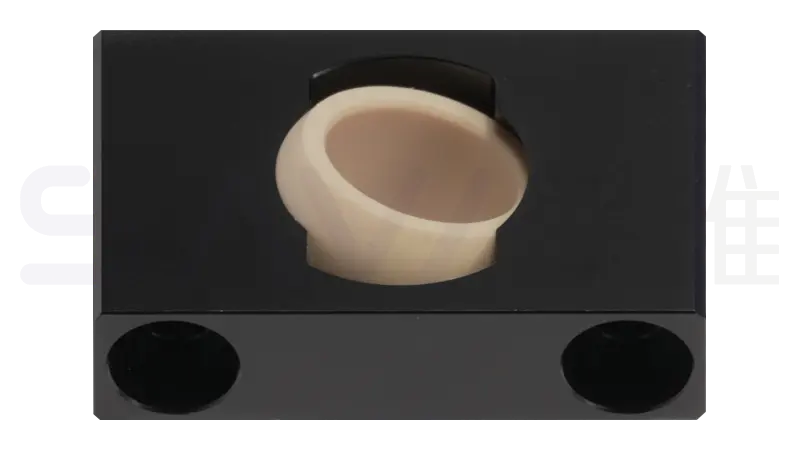

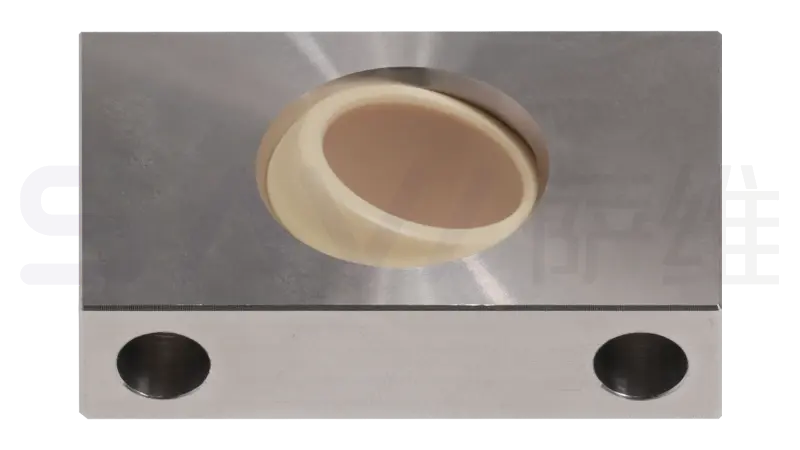

Product Dimensions [mm]
| Spec. Code | d1 E10 [mm] | H [mm] | H1 Imm] | A [mm] | M [mm] | A.1 [mm] | L [mm] | C [mm] | C1 [mm] | Max. Static Load Short‑term [N] | Max. Static Load Long‑term [N] | Max. Ax. Tensile Strength Short‑term [N] | Max. Ax. Tensile Strength Long‑term [N] | Max. Ax. Comp. Strength Short‑term [N] | Max. Ax. Comp. Strength Long‑term [N] | Max. Torq. [Nm] | Wt. [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GNB-08 | 8 | 19 | / | 4.5 | 22 | / | 31 | 9 | 8 | 2500 | 1250 | 4300 | 2150 | 600 | 300 | 1.3 | 9 |
| GNB-10 | 10 | 22 | / | 5.5 | 26 | / | 36 | 10 | 9 | 3400 | 1700 | 5300 | 2650 | 700 | 350 | 2.5 | 17 |
| GNB-12 | 12 | 26 | / | 5.5 | 28 | / | 38 | 10 | 12 | 4600 | 2250 | 6500 | 3250 | 750 | 375 | 2.5 | 9 |
| GNB-16 | 16 | 34 | 6.4 | 6.6 | 37 | 10.6 | 50 | 13 | 13 | 6700 | 3350 | 8500 | 4250 | 1100 | 550 | 4.5 | 30 |
| GNB-20 | 20 | 40 | 8.6 | 9 | 46 | 14 | 62 | 16 | 16 | 8500 | 4250 | 11000 | 5750 | 1400 | 700 | 4.5 | 52 |
| GNB-25 | 25 | 48 | 8.6 | 9 | 54 | 14 | 72 | 20 | 20 | 13500 | 6750 | 18500 | 9250 | 2300 | 1150 | 10.5 | 85 |
| GNB-30 | 30 | 56 | 10.6 | 11 | 64 | 17 | 86 | 22 | 22 | 10000 | 5000 | 16500 | 8250 | 2500 | 1250 | 10.5 | 140 |
