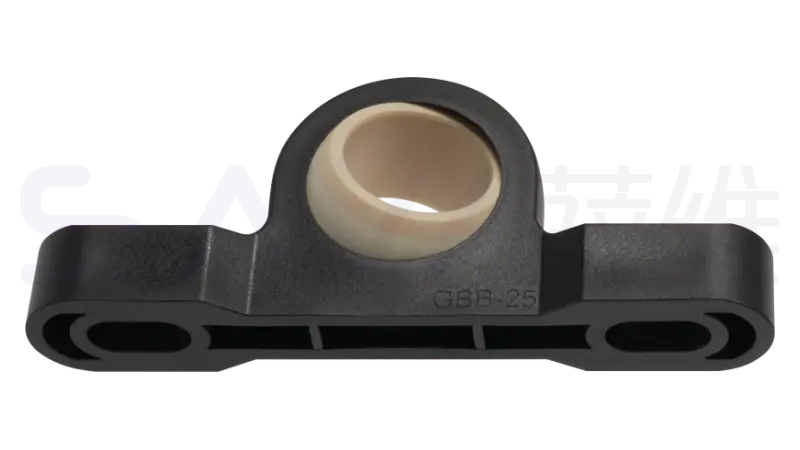

SAVI GBB Base Bearings are easy-to-mount bearings that can compensate for misalignment and withstand edge loads. They are especially suitable for applications with concealed mounting positions, humid operating conditions or special hygiene requirements.
The bearing housing is made of SAVI-M163, a long-fiber reinforced engineering plastic with excellent impact resistance. It can be used continuously within the temperature range of -30°C to +80°C. The spherical ball of standard base bearings is made of SAVI-EPW material, which features a low friction coefficient and minimal stick-slip effect during dry operation. This is particularly important for low-load and low-speed applications.
Maintenance-free, dry operation
Misalignment and edge load compensation
Resistant to corrosion and chemicals
Excellent vibration damping performance
Suitable for rotary, oscillating and linear motion
Very light weight
For misalignment adjustment
Typical application fields:Outdoor sun shading Baking equipment Wood processing Paper industry
Scroll left/right to view the full table.
Product Dimensions [mm]
| Spec. Code | d E10 | d1 [mm] | h1 [mm] | h2 [mm] | D [mm] | b [mm] | a [mm] | m [mm] | X [mm] | W [mm] | Max. Static Load Short‑term [N] | Max. Static Load Long‑term [N] | Max. Ax. Tensile Strength [N] | Max. Torq. for Ax. Hole [Nm] | Wt. [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GBB-16 | 16 | 6.6 | 18 | 10.5 | SD31.7 | 13 | 86 | 60 | 12 | 4.2 | 3000 | 1500 | 1800 | 4.5 | 40 |
| GBB-20 | 20 | 9 | 22 | 13 | SD38 | 16 | 98 | 68 | 14 | 4.5 | 4700 | 2350 | 1300 | 10.5 | 54 |
| GBB-25 | 25 | 9 | 27 | 16 | SD46.7 | 20 | 124 | 86 | 17 | 6.5 | 6600 | 330 | 1600 | 10.5 | 75.3 |
| GBB-30 | 30 | 11 | 32 | 17 | SD53.7 | 22 | 139 | 96 | 20 | 7 | 8100 | 4050 | 2100 | 21.5 | 116.8 |
