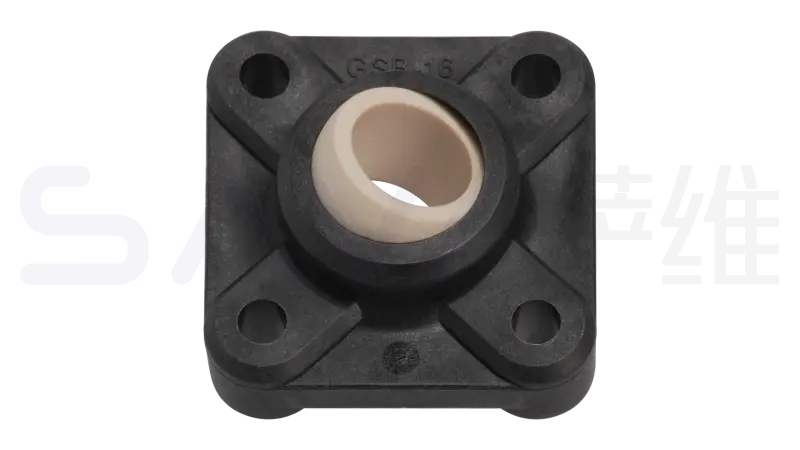

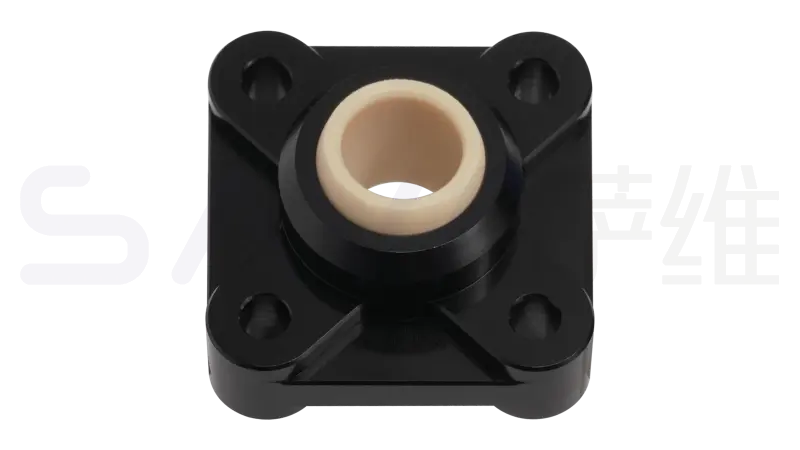

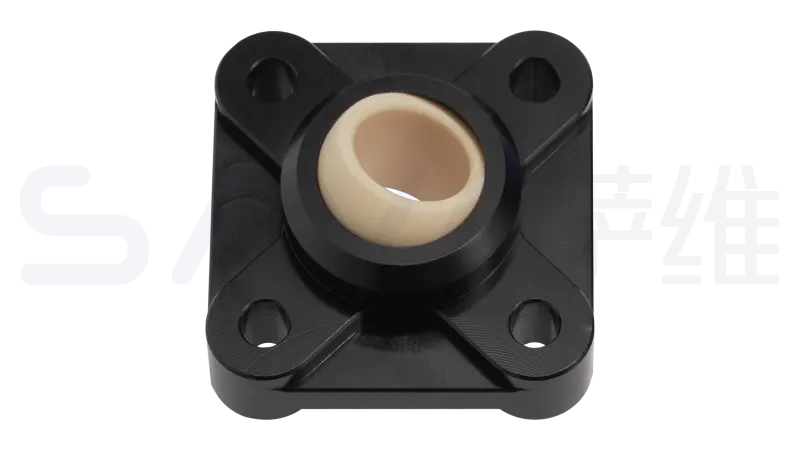

Product Dimensions [mm]
| Spec. Code | d1 E10 [mm] | D1 [mm] | D2 [mm] | A1 [mm] | A2 [mm] | M [mm] | H [mm] | Max. Static Ax. Load Short‑term [N] | Max. Static Ax. Load Long‑term [N] | Max. Static Rad. Load Short‑term [N] | Max. Static Rad. Load Long‑term [N] | Max. Static Torq. for Hole [Nm] | Max. Swing Angle | Wt. [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GSB-04 | 4 | 14 | 3.2 | 8.5 | 4.5 | 17 | 25 | 200 | 100 | 1000 | 500 | 0.6 | 28° | 2.6 |
| GSB-05 | 5 | 14 | 3.2 | 8.5 | 4.5 | 17 | 25 | 300 | 150 | 1000 | 500 | 0.6 | 29° | 2.7 |
| GSB-06 | 6 | 14 | 3.2 | 8.5 | 4.5 | 17 | 25 | 300 | 150 | 1000 | 500 | 0.6 | 25° | 2.8 |
| GSB-08 | 8 | 18 | 4.3 | 10.5 | 5.5 | 22 | 33 | 450 | 225 | 1400 | 700 | 1.3 | 25° | 5.9 |
| GSB-10 | 10 | 22 | 5.3 | 12 | 6.5 | 26 | 38 | 700 | 350 | 2000 | 1000 | 2.5 | 25° | 9.1 |
| GSB-12 | 12 | 25 | 5.3 | 13 | 7 | 28 | 40 | 850 | 425 | 2500 | 1250 | 2.5 | 21° | 11 |
| GSB-15 | 15 | 30 | 6.4 | 15.5 | 8.5 | 34 | 49 | 1100 | 550 | 3000 | 1500 | 4.5 | 20° | 20.2 |
| GSB-16 | 16 | 32 | 6.4 | 16.5 | 9 | 36 | 52 | 1350 | 675 | 3200 | 1600 | 4.5 | 27° | 23.3 |
| GSB-20 | 20 | 40 | 8.4 | 20 | 11 | 45 | 65 | 2000 | 1000 | 4000 | 2000 | 10.5 | 19° | 45 |
| GSB-25 | 25 | 48.5 | 8.4 | 25 | 14 | 52 | 74 | 2400 | 1200 | 5600 | 2800 | 10.5 | 15° | 76 |
| GSB-30 | 30 | 55 | 10.5 | 26 | 15 | 60 | 85 | 2800 | 1400 | 6000 | 3000 | 21.5 | 14° | 100.7 |
