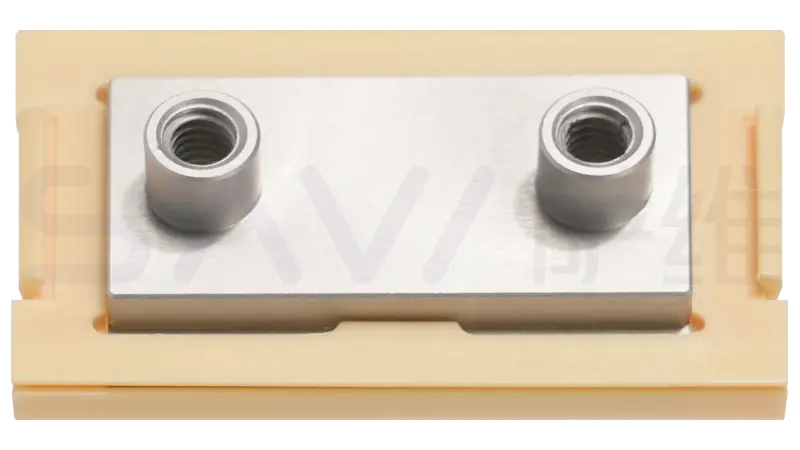

SAVI NR06 Miniature Slide is fitted with wear-resistant sliding inserts made of SAVI-EPJ material. It is easy to install, firmly secured and reliable in performance, delivering stable operation. It can satisfy various motion guidance requirements and is an ideal option for projects pursuing durability and high efficiency.
No lubricating oil is required. It is dirt-resistant and easy to clean, ensuring smooth and quiet equipment operation.
Sliding friction inserts made of EPJ wear-resistant material
For use with NW06 miniature guide rails
Ultra-lightweight
Smooth operation without jamming
Silent and noiseless T
hreaded hole mounting
Scroll left/right to view the full table.
Linear Guide – Dimensions [mm]
| Spec. Code | A [mm] | A1 [mm] | H [mm] | H1 [mm] | B [mm] | C4 [mm] | C5/C6 min. | C5/C6 max. | k1 | k2 | h1 | Lmax. [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NW06-27-L | 27 | 17 | 9 | 3.4 | 22 | 60 | 20 | 49.5 | Φ 4.5 | Φ9 | 1.1 | 3000 |
Carriage Dimensions [mm]
| Spec. Code | A1 [mm] | B [mm] | L [mm] | H [mm] | H1 [mm] | K3 [mm] | D [mm] |
|---|---|---|---|---|---|---|---|
| NR06-27-40 | 20 | 23.8 | 40 | 3.4 | 9.7 | M4 | 6 |
