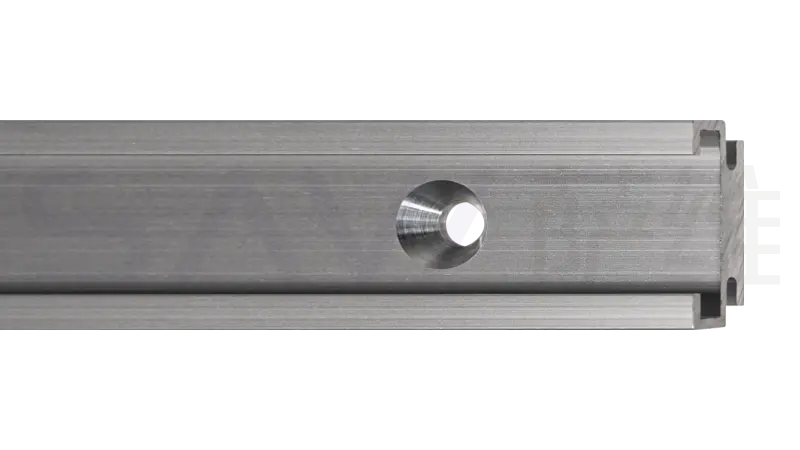

SAVI WN06 Miniature Linear Guide is designed for smooth and efficient motion. Fabricated from high-grade aluminum with silver anodized surface treatment, it offers excellent wear and corrosion resistance, balancing durability and refined appearance. It is widely applicable in various scenarios with reliable performance, compact structure and easy installation.
When matched with SAVI self-lubricating linear slides, it achieves smooth and quiet operation. No lubricating oil is required. It is dirt-resistant and easy to clean. Cut-to-length and custom drilling are available upon request.
Aluminum alloy with anodized surface
Very low mounting height
Suitable for confined installation spaces
Compact structure and low self-weight
Maintenance-free, self-lubricating
Corrosion resistant
Scroll left/right to view the full table.
Linear Guide – Dimensions [mm]
| Spec. Code | A [mm] | A1 [mm] | H [mm] | H1 [mm] | B [mm] | C4 [mm] | C5/C6 min. | C5/C6 max. | k1 | k2 | h1 | Lmax. [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NW06-27-L | 27 | 17 | 9 | 3.4 | 22 | 60 | 20 | 49.5 | Φ 4.5 | Φ9 | 1.1 | 3000 |
Carriage Dimensions [mm]
| Spec. Code | A1 [mm] | B [mm] | L [mm] | H [mm] | H1 [mm] | K3 [mm] | D [mm] |
|---|---|---|---|---|---|---|---|
| NR06-27-40 | 20 | 23.8 | 40 | 3.4 | 9.7 | M4 | 6 |
