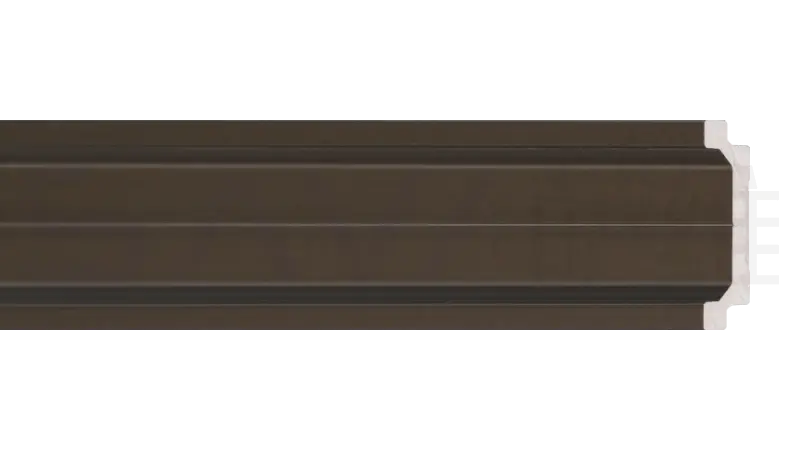

Guide Rail & Small Carriage – Dimensions [mm]
| Guide Rail | Carriage | Wt. kg/m | H ±0.25 | Da -0.1 | Dr | L max. | a | A1 | A3 | b | h | h2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WSQ-06-30-L | WWR-06-05 | 0.45 | 14 | 5 | 5 | 3000 | 27-0.4 | 13.5 | 4.5 | 30 | 4 | 7.5 |
| WSQ-10-40-L | WWR-01-10 | 1.05 | 20 | 7.5 | 7.5 | 3000 | 36-0.5 | 18.5 | 6.5 | 40 | 5.5 | 11 |
| G1 | G2 | Q1 | Q2 | C1 | C2 | C3 | C4 | C5 min. | C5 max. | C6 min. | C6 max. | K1 Mt. Bolt | K2 Mt. Bolt |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22.5 | 7.5 | 21.5 | 15 | 19 | 10 | 18 | 60 | 20 | 49.5 | 20 | 49.5 | M4 | M3 |
| 30 | 20 | 29 | 21 | 29 | 16 | 26 | 120 | 20 | 49.5 | 20 | 49.5 | M6 | M6 |
Round‑Rail Slide Unit – Product Dimensions [mm]
| Spec. Code | A Width | A2 | C Length | C2 | H2 ±0.25 | K2 | Wt. [g] | Max. Static Ld. Coy [N] | Max. Static Ld. Coz [N] | Max. Static Ld. Mox [Nm] | Max. Static Ld. Moy [Nm] | Max. Static Ld. Moz [Nm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WW-06-30-06 | 54 | 45 | 60 | 51 | 18 | M4 | 100 | 1680 | 840 | 25 | 34 | 34 |
| WW-06-30-08 | 54 | 45 | 80 | 71 | 18 | M4 | 110 | 1680 | 840 | 25 | 51 | 51 |
| WW-06-30-10 | 54 | 45 | 100 | 91 | 18 | M4 | 120 | 1680 | 840 | 25 | 68 | 68 |
