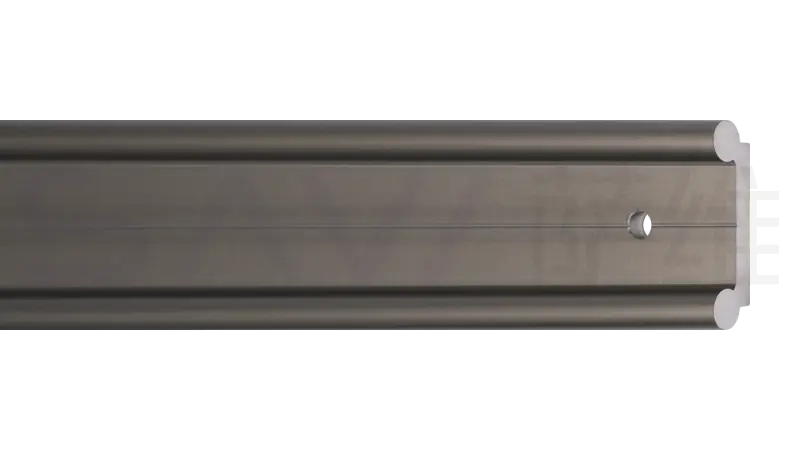

Double‑Round Linear Guide – Product Dimensions [mm]
| Spec. Code (W/o Mount. Holes) | D [mm] | di [mm] | h [mm] | h2 [mm] | b [mm] | a-0.5 [mm] | C4 [mm] | C5 [mm] | C6 [mm] | K1 [mm] | L max. [mm] | Weight [kg/m] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR02-10-40-L-WH | 10 | - | 5.5 | 9 | 40 | 40 | - | - | - | - | 3000 | 1 |
| WR02-10-80-L-WH | 10 | - | 5.5 | 9 | 74 | 74 | - | - | - | - | 3000 | 1.5 |
| WR02-16-60-L-WH | 16 | 8 | 7.5 | 14 | 58 | 54 | - | - | - | - | 3000 | 1.9 |
| WR02-20-80-L-WH | 20 | 10.2 | 9.5 | 20 | 82 | 74 | - | - | - | - | 3000 | 3.3 |
| Spec. Code | D [mm] | di [mm] | h [mm] | h2 [mm] | b [mm] | a-0.5 [mm] | C4 [mm] | C5 [mm] | C6 [mm] | K1 [mm] | L max. [mm] | Weight [kg/m] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR02-10-40-L | 10 | - | 5.5 | 9 | 40 | 40 | 120 | 20 | 80 | * M 6(Thru‑Hole) | 3000 | 1 |
| WR02-10-80-L | 10 | - | 5.5 | 9 | 74 | 74 | 120 | 20 | 80 | * M 6(Thru‑Hole) | 3000 | 1.5 |
| WR02-16-60-L | 16 | 8 | 7.5 | 14 | 58 | 54 | 120 | 20 | 80 | M 8 | 3000 | 1.9 |
| WR02-20-80-L | 20 | 10.2 | 9.5 | 20 | 82 | 74 | 120 | 20 | 80 | M 8 | 3000 | 3.3 |
Round‑Rail Slide Unit – Product Dimensions [mm]
| Spec. Code | Spec. Code Mounting rail | Wt. [kg] | A Width | C Length | A2 | C2 | K2 | H2 ±0.17 | Max. Static Ld. Coy [N] | Max. Static Ld. Coz [N] | Max. Static Ld. Mox [Nm] | Max. Static Ld. Moy [Nm] | Max. Static Ld. Moz [Nm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WLIN-10-40-100 | WR02-10-40 | 0.29 | 73 | 100 | 60 | 87 | M6 | 24 | 4,800 | 2400 | 96 | 170 | 170 |
| WLIN-10-40-150 | WR02-10-40 | 0.34 | 73 | 150 | 60 | 137 | M6 | 24 | 4800 | 2,400 | 96 | 290 | 290 |
| WLIN-10-40-200 | WR02-10-40 | 0.40 | 73 | 200 | 60 | 187 | M6 | 24 | 4,800 | 2,400 | 96 | 410 | 410 |
| WLIN-10-80-100 | WR02-10-80 | 0.34 | 107 | 100 | 94 | 87 | M6 | 24 | 4,800 | 2,400 | 178 | 170 | 170 |
| WLIN-10-80-150 | WR02-10-80 | 0.42 | 107 | 150 | 94 | 137 | M6 | 24 | 4,800 | 2,400 | 178 | 290 | 290 |
| WLIN-10-80-200 | WR02-10-80 | 0.50 | 107 | 200 | 94 | 187 | M6 | 24 | 4800 | 2,400 | 178 | 410 | 410 |
| WLIN-16-60-100 | WR02-16-60 | 0.71 | 104 | 100 | 86 | 82 | M8 | 35 | 8400 | 4200 | 240 | 270 | 270 |
| WLIN-16-60-150 | WR02-16-60 | 0.84 | 104 | 150 | 86 | 132 | M8 | 35 | 8,400 | 4,200 | 240 | 480 | 480 |
| WLIN-16-60-200 | WR02-16-60 | 0.97 | 104 | 200 | 86 | 182 | M8 | 35 | 8,400 | 4,200 | 240 | 690 | 690 |
| WLIN-20-80-150 | WR02-20-80 | 1.20 | 134 | 150 | 116 | 132 | M8 | 44 | 12,800 | 6,400 | 525 | 670 | 670 |
| WLIN-20-80-200 | WR02-20-80 | 1.30 | 134 | 200 | 116 | 182 | M8 | 44 | 12800 | 6,400 | 525 | 990 | 990 |
| WLIN-20-80-250 | WR02-20-80 | 1.50 | 134 | 250 | 116 | 232 | M8 | 44 | 12,800 | 6,400 | 525 | 1,250 | 1,250 |
