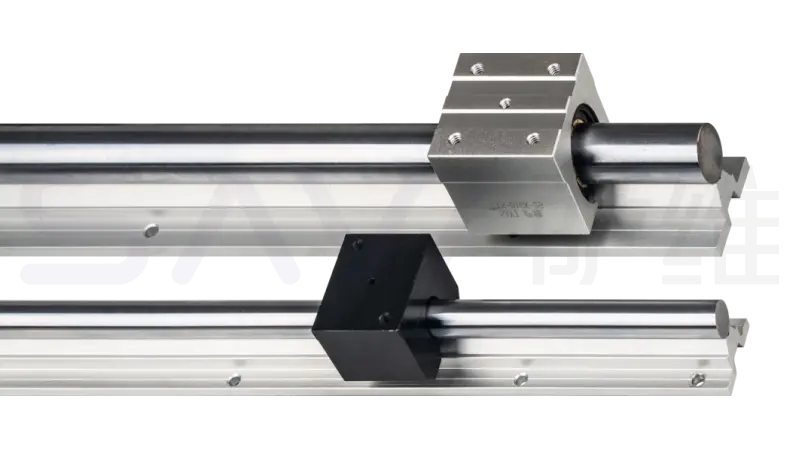

Product Dimensions【mm】
| Spec. Code Steel Shaft | Spec. Code Al. Shaft | Spec. Code S.S. Shaft | Shaft Φ | B | h | T | E | H | F | X | Y | C | S1 Φ | S2 d1xd2xl | N | P | Max. Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCR-10-L | LAR-10-L | LER-10-L | 10 | 32 | 18 | 4 | 16 | 13 | 12.5 | 4.7 | 8.5 | 22 | 4.5 | 5×9x5 | 20 | 150 | 3000 |
| LCR-12-L | LAR-12-L | LER-12-L | 12 | 32 | 19 | 4 | 16 | 13 | 12.5 | 4.7 | 8.5 | 22 | 4.5 | 5×9×5 | 20 | 150 | 3000 |
| LCR-16-L | LAR-16-L | LER-16-L | 16 | 40 | 25 | 5 | 20 | 17.8 | 18.5 | 8 | 11.7 | 30 | 5.5 | 5.5×9.5×5.4 | 20 | 150 | 3000 |
| LCR-20-L | LAR-20-L | LER-20-L | 20 | 45 | 27 | 5 | 22.5 | 17.7 | 19 | 8 | 10 | 30 | 5.5 | 5.5×9.5×5.4 | 20 | 150 | 3000 |
| LCR-25-L | LAR-25-L | LER-25-L | 25 | 55 | 33 | 6 | 27.5 | 21 | 21.5 | 8 | 12 | 35 | 6.6 | 6.6x11x6.5 | 25 | 200 | 3000 |
| LCR-30-L | LAR-30-L | LER-30-L | 30 | 60 | 37 | 7 | 30 | 22.8 | 26.5 | 8 | 13 | 40 | 6.6 | 6.6x11x6.5 | 25 | 200 | 3000 |
| LCR-40-L | LAR-40-L | LER-40-L | 40 | 75 | 48 | 9 | 37.5 | 29.5 | 38 | 15.5 | 17 | 55 | 9 | 9x14x8.6 | 30 | 200 | 3000 |
| LCR-50-L | LAR-50-L | LER-50-L | 50 | 95 | 62 | 11 | 47.5 | 38.8 | 45 | 20 | 21 | 70 | 11 | 11x17.5x10.8 | 35 | 200 | 3000 |
