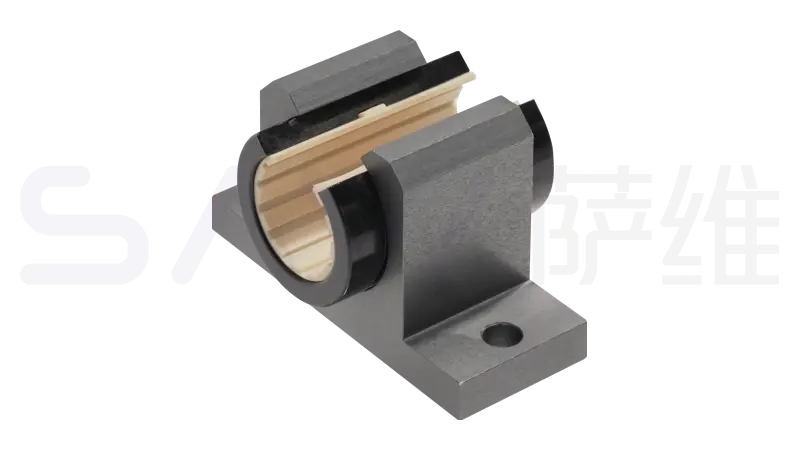

Product Dimensions【mm】 Technical parameters: Housing bore: H7; Shaft: h6‑h9
| Spec. Code Housing Int. Fitting： LIN-01RK | Spec. Code Housing Int. Fitting： LIN-03RK | d | D | H | H1 | H2 | A | A1 | A2 | E | E1 | E3 | (°) | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LIN-01RASK-12 | LIN-03RASK-12 | 12 | 22 | 18 | 28 | 6 | 52 | 42 | 30 | 20 | 10 | 14 | 78 | 5.3 |
| LIN-01RASK-16 | LIN-03RASK-16 | 16 | 26 | 22 | 33.5 | 7 | 56 | 46 | 34 | 22 | 11 | 17 | 78 | 5.3 |
| LIN-01RASK-20 | LIN-03RASK-20 | 20 | 32 | 25 | 42 | 8 | 70 | 58 | 40 | 28 | 14 | 17 | 60 | 6.4 |
| LIN-01RASK-25 | LIN-03RASK-25 | 25 | 40 | 30 | 51 | 10 | 80 | 68 | 50 | 40 | 20 | 21 | 60 | 6.4 |
| LIN-01RASK-30 | LIN-03RASK-30 | 30 | 47 | 35 | 60 | 10 | 88 | 76 | 58 | 48 | 24 | 21 | 54 | 6.4 |
| LIN-01RASK-40 | LIN-03RASK-40 | 40 | 62 | 45 | 77 | 12 | 108 | 94 | 74 | 56 | 28 | 27 | 54 | 8.4 |
