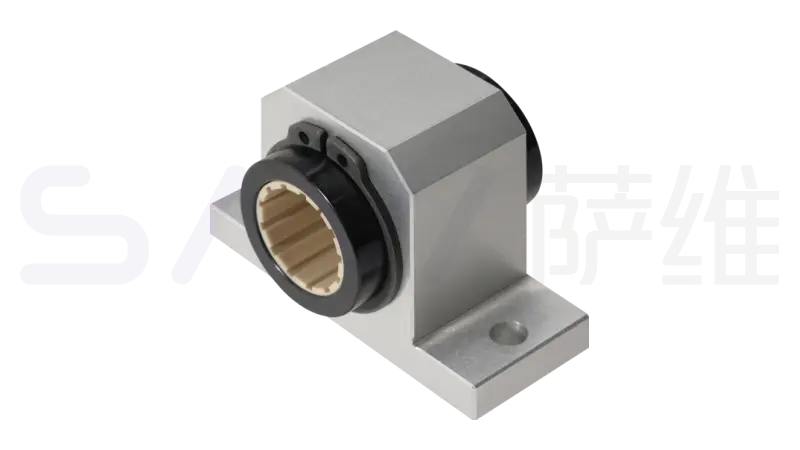

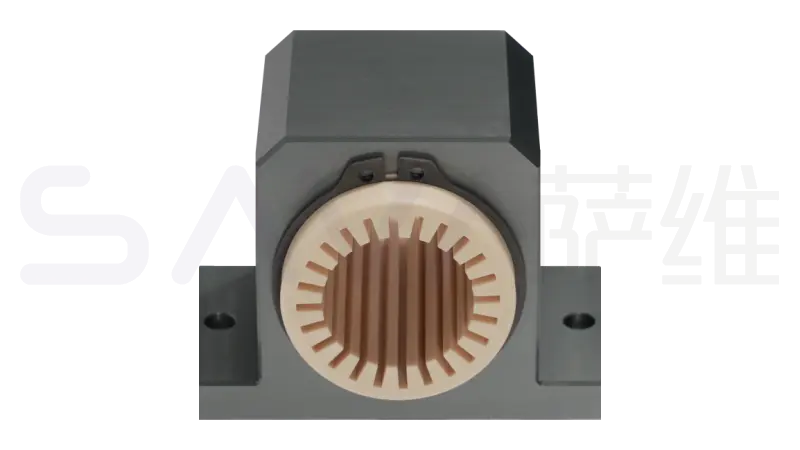

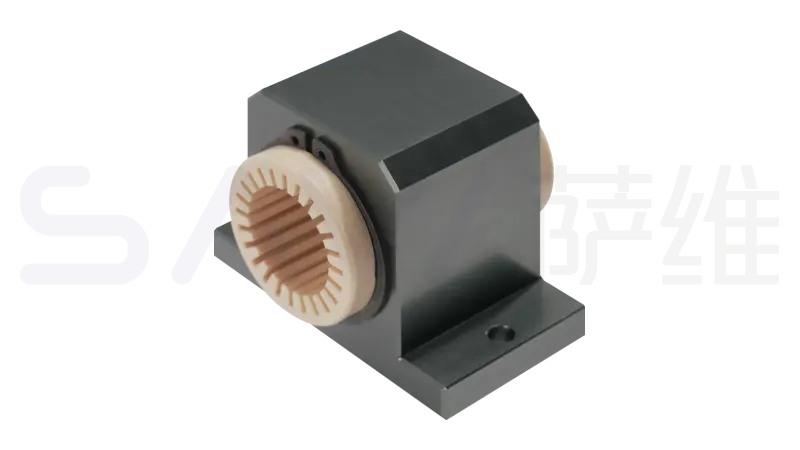

Product Dimensions【mm】 Technical parameters: Housing bore: H7; Shaft: h6‑h9
| Spec. Code Housing Int. Fitting： LIN-01R | Spec. Code Housing Int. Fitting： LIN-03R | Spec. Code Housing Int. Fitting： LIN-00 | d | D | H | H1 | H2 | A | A1 | A2 | E | E1 | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LIN-01RAS-12 | LIN-03RAS-12 | LIN-00RAS-12 | 12 | 22 | 18 | 35 | 6 | 52 | 42 | 30 | 20 | 10 | 5.3 |
| LIN-01RAS-16 | LIN-03RAS-16 | LIN-00RAS-16 | 16 | 26 | 22 | 40.5 | 7 | 56 | 46 | 34 | 22 | 11 | 5.3 |
| LIN-01RAS-20 | LIN-03RAS-20 | LIN-00RAS-20 | 20 | 32 | 25 | 48.0 | 8 | 70 | 58 | 40 | 28 | 14 | 6.4 |
| LIN-01RAS-25 | LIN-03RAS-25 | LIN-00RAS-25 | 25 | 40 | 30 | 58.0 | 10 | 80 | 68 | 50 | 40 | 20 | 6.4 |
| LIN-01RAS-30 | LIN-03RAS-30 | LIN-00RAS-30 | 30 | 47 | 35 | 67.0 | 10 | 88 | 76 | 58 | 48 | 24 | 6.4 |
| LIN-01RAS-40 | LIN-03RAS-40 | LIN-00RAS-40 | 40 | 62 | 45 | 85.0 | 12 | 108 | 94 | 74 | 56 | 28 | 8.4 |
