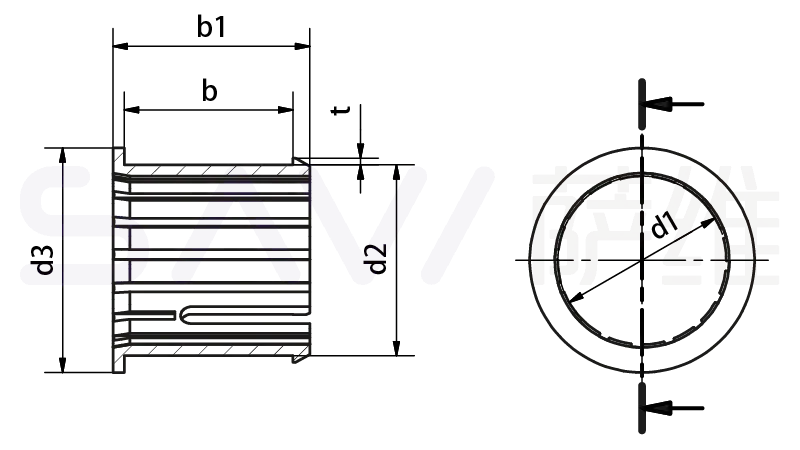

Product Dimensions【mm】 Technical parameters: Housing bore: H7; Shaft: h6‑h9
| Spec. Code | d1 [mm] | d1 Tolerance [mm] | d2 [mm] | d3 [mm] | b +0.05/+0.25 [mm] | b1 [mm] | t [mm] |
|---|---|---|---|---|---|---|---|
| LIN-1216-16 | 12 | +0.04/ +0.10 | 16 | 20 | 16 | 20.5 | 0.8 |
| LIN-1418-18 | 14 | +0.04/ +0.10 | 18 | 21 | 18 | 24 | 1 |
| LIN-1517-15 | 15 | +0.04/ +0.10 | 17 | 22 | 15 | 18 | 0.8 |
| LIN-1618-30 | 16 | +0.04/+0.10 | 18 | 21 | 30 | 34 | 1 |
| LIN-1620-20 | 16 | +0.04/+0.10 | 20 | 23.5 | 20 | 26 | 0.75 |
| LIN-1820-15 | 18 | +0.04/+0.10 | 20 | 23 | 15 | 18 | 1 |
| LIN-1822-20 | 18 | +0.04/+0.10 | 22 | 26 | 20 | 24.5 | 0.8 |
| LIN-2024-25 | 20 | +0.04/+0.12 | 24 | 30 | 25 | 30 | 1 |
| LIN-2227-27 | 22 | +0.04/+0.12 | 27 | 34 | 27 | 32 | 1 |
| LIN-2227-34 | 22 | +0.04/+0.12 | 27 | 32 | 34 | 39.5 | 1 |
| LIN-2529-30 | 25 | +0.04/+0.12 | 29 | 35 | 30 | 35.5 | 1 |
| LIN-3034-30 | 30 | +0.04/ +0.12 | 34 | 40 | 30 | 35 | 1.2 |
