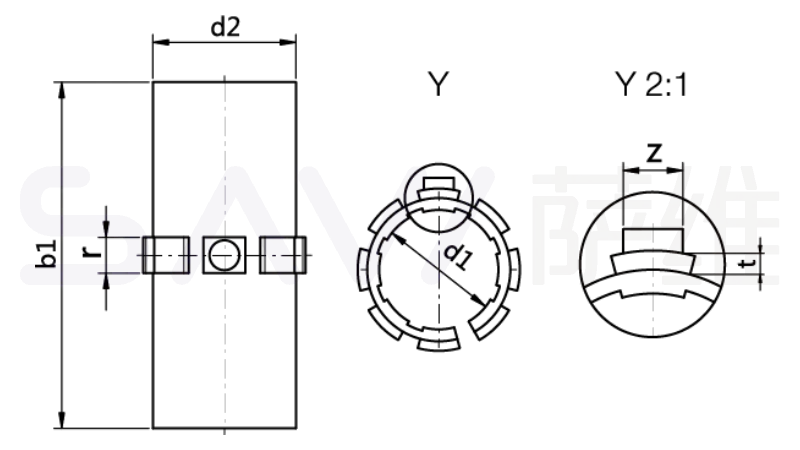

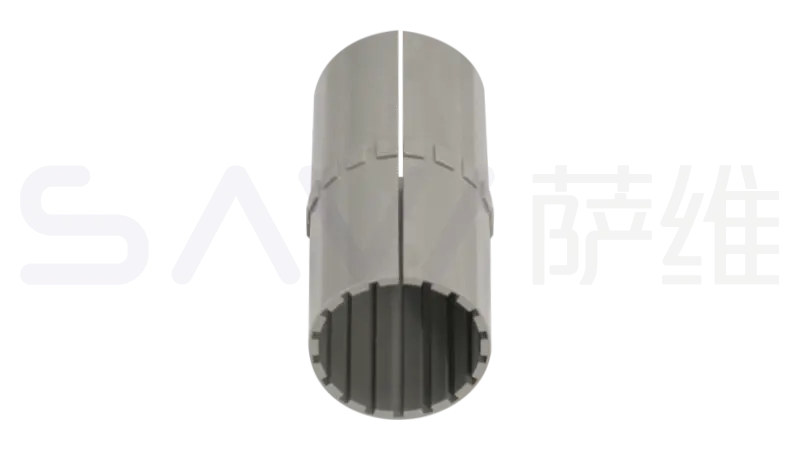

Product Dimensions【mm】 Technical parameters: Housing bore: H7; Shaft: h6‑h9
| Spec. Code | d1 | Tolerance | d2 | b1 | r | t | z | Wt. [ g ] |
|---|---|---|---|---|---|---|---|---|
| LINE-01-10 | 10 | +0.030+0.070 | 12 | 28 | 3 | 0.8 | 2.5 | 1.05 |
| LINE-01-12 | 12 | +0.030+0.070 | 14 | 31 | 3 | 0.8 | 3 | 1.35 |
| LINE-01-16 | 16 | +0.030+0.070 | 18 | 35 | 3.5 | 0.8 | 3.5 | 2.1 |
| LINE-01-20 | 20 | +0.030 +0.070 | 23 | 44 | 5 | 0.8 | 3.5 | 4.88 |
| LINE-01-25 | 25 | +0.030+0.070 | 28 | 57 | 5 | 0.8 | 4 | 7.51 |
| LINE-01-30 | 30 | +0.040 +0.085 | 34 | 67 | 5 | 0.8 | 4 | 13.58 |
| LINE-01-35 | 35 | +0.040+0.085 | 39 | 69 | 5 | 0.8 | 4 | 16.5 |
| LINE-01-40 | 40 | +0.040 +0.085 | 44 | 79 | 6 | 1.3 | 5 | 20.54 |
| LINE-01-50 | 50 | +0.050+0.100 | 55 | 99 | 7 | 1.3 | 6 | 36.89 |
Assembly drawing for housing bore of LIN‑01 sliding‑film series
Product Dimensions【mm】 Technical parameters: Housing bore: H7; Shaft: h6‑h9
| Spec. Code | Shaft ø | di H7 | B h10 | r +0.05 | t +0.1 | f +0.5 | Z +0.2 |
|---|---|---|---|---|---|---|---|
| LINE-01-10 | 10 | 12 | 29 | 3.0 | 1.0 | 1.0 | 2.6 |
| LINE-01-12 | 12 | 14 | 32 | 3.0 | 1.0 | 1.5 | 3.1 |
| LINE-01-16 | 16 | 18 | 36 | 3.5 | 1.0 | 1.7 | 3.6 |
| LINE-01-20 | 20 | 23 | 45 | 5.0 | 1.0 | 2.0 | 3.6 |
| LINE-01-25 | 25 | 28 | 58 | 5.0 | 1.0 | 2.0 | 4.1 |
| LINE-01-30 | 30 | 34 | 68 | 5.0 | 1.0 | 2.0 | 4.1 |
| LINE-01-35 | 35 | 39 | 70 | 5.0 | 1.0 | 2.0 | 4.1 |
| LINE-01-40 | 40 | 44 | 80 | 6.0 | 1.5 | 2.5 | 5.1 |
| LINE-01-50 | 50 | 55 | 100 | 7.0 | 1.5 | 2.5 | 6.1 |
Suitable for：LIN-01R/LIN-03R LIN-06R LIN-01RT/LIN-01RF etc.
