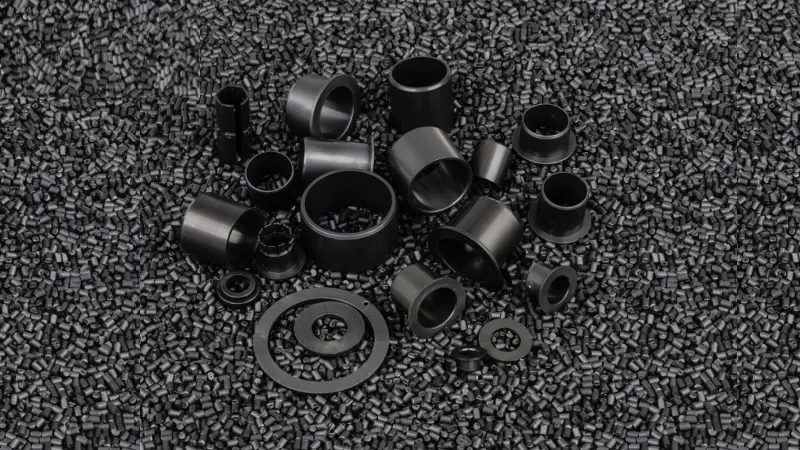

规格代码	d1	d2	L	d3	t	d1压入后公差	d1压入后公差	孔径H7	孔径H7	轴径h9	轴径h9
NO.	mm	mm	mm	mm	mm	Min.	Max.	Min.	Max.	Min.	Max.
EPTF-0304-03	3	4.5	3	7.5	0.75	3.014	3.054	4.5	4.512	2.975	3
EPTF-0304-05	3	4.5	5	7.5	0.75	3.014	3.054	4.5	4.512	2.975	3
EPTF-0405-03	4	5.5	3	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPTF-0405-04	4	5.5	4	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPTF-0405-05	4	5.5	5	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPTF-0506-05	5	6	5	10	0.5	5.01	5.04	6	6.012	4.97	5
EPTF-0506-08	5	6	8	10	0.5	5.01	5.04	6	6.012	4.97	5
EPTF-0507-05	5	7	5	11	1	5.01	5.04	7	7.015	4.97	5
EPTF-0608-04	6	8	4	12	1	6.02	6.068	8	8.015	5.97	6
EPTF-0608-06	6	8	6	12	1	6.02	6.068	8	8.015	5.97	6
EPTF-0608-08	6	8	8	12	1	6.02	6.068	8	8.015	5.97	6
EPTF-0608-10	6	8	10	12	1	6.02	6.068	8	8.015	5.97	6
EPTF-0610-06	6	10	6	14	2	6.03	6.105	10	10.015	5.97	6
EPTF-0810-05	8	10	5	15	1	8.025	8.083	10	10.015	7.964	8
EPTF-0810-06	8	10	6	15	1	8.025	8.083	10	10.015	7.964	8
EPTF-0810-07	8	10	7	15	1	8.025	8.083	10	10.015	7.964	8
EPTF-0810-08	8	10	8	15	1	8.025	8.083	10	10.015	7.964	8
EPTF-0810-09	8	10	9	15	1	8.025	8.083	10	10.015	7.964	8
EPTF-0810-10	8	10	10	15	1	8.025	8.083	10	10.015	7.964	8
EPTF-0812-10	8	12	10	16	2	8.013	8.071	12	12.018	7.964	8
EPTF-1012-05	10	12	5	18	1	10.025	10.083	12	12.018	9.964	10
EPTF-1012-07	10	12	7	18	1	10.025	10.083	12	12.018	9.964	10
EPTF-1012-09	10	12	9	18	1	10.025	10.083	12	12.018	9.964	10
EPTF-1012-10	10	12	10	18	1	10.025	10.083	12	12.018	9.964	10
EPTF-1012-12	10	12	12	18	1	10.025	10.083	12	12.018	9.964	10
EPTF-1012-15	10	12	15	18	1	10.025	10.083	12	12.018	9.964	10
EPTF-1012-17	10	12	17	18	1	10.025	10.083	12	12.018	9.964	10
EPTF-1214-04	12	14	4	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1214-05	12	14	5	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1214-07	12	14	7	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1214-09	12	14	9	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1214-12	12	14	12	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1214-15	12	14	15	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1214-17	12	14	17	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1214-20	12	14	20	20	1	12.032	12.102	14	14.018	11.957	12
EPTF-1416-10	14	16	10	22	1	14.032	14.102	16	16.018	13.957	14
EPTF-1416-12	14	16	12	22	1	14.032	14.102	16	16.018	13.957	14
EPTF-1416-17	14	16	17	22	1	14.032	14.102	16	16.018	13.957	14
EPTF-1517-09	15	17	9	23	1	15.032	15.102	17	17.018	14.957	15
EPTF-1517-12	15	17	12	23	1	15.032	15.102	17	17.018	14.957	15
EPTF-1517-17	15	17	17	23	1	15.032	15.102	17	17.018	14.957	15
EPTF-1618-06	16	18	6	24	1	16.032	16.102	18	18.018	15.957	16
EPTF-1618-12	16	18	12	24	1	16.032	16.102	18	18.018	15.957	16
EPTF-1618-16	16	18	16	24	1	16.032	16.102	18	18.018	15.957	16
EPTF-1618-17	16	18	17	24	1	16.032	16.102	18	18.018	15.957	16
EPTF-1618-21	16	18	21	24	1	16.032	16.102	18	18.018	15.957	16
EPTF-1820-12	18	20	12	26	1	18.032	18.102	20	20.021	17.957	18
EPTF-1820-17	18	20	17	26	1	18.032	18.102	20	20.021	17.957	18
EPTF-1820-22	18	20	22	26	1	18.032	18.102	20	20.021	17.957	18
EPTF-2023-11.5	20	23	11.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPTF-2023-15.5	20	23	15.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPTF-2023-16.5	20	23	16.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPTF-2023-21	20	23	21	30	1.5	20.04	20.124	23	23.021	19.948	20
EPTF-2026-20	20	26	20	32	3	20.065	20.195	26	26.021	19.948	20
EPTF-2528-11.5	25	28	11.5	35	1.5	25.04	25.124	28	28.021	24.948	25
EPTF-2528-12	25	28	12	35	1.5	25.04	25.124	28	28.021	24.948	25
EPTF-2528-14.5	25	28	14.5	35	1.5	25.04	25.124	28	28.021	24.948	25
EPTF-2528-21	25	28	21	35	1.5	25.04	25.124	28	28.021	24.948	25
EPTF-2532-25	25	32	25	38	4	25.065	25.195	32	32.025	24.948	25
EPTF-3034-16	30	34	16	42	2	30.04	30.124	34	34.025	29.948	30
EPTF-3034-20	30	34	20	42	2	30.04	30.124	34	34.025	29.948	30
EPTF-3034-26	30	34	26	42	2	30.04	30.124	34	34.025	29.948	30
EPTF-3034-37	30	34	37	42	2	30.04	30.124	34	34.025	29.948	30
EPTF-3236-16	32	36	16	40	2	32.05	32.15	36	36.025	31.938	32
EPTF-3236-26	32	36	26	40	2	32.05	32.15	36	36.025	31.938	32
EPTF-3539-12	35	39	12	47	2	35.05	35.15	39	39.025	34.938	35
EPTF-3539-16	35	39	16	47	2	35.05	35.15	39	39.025	34.938	35
EPTF-3539-26	35	39	26	47	2	35.05	35.15	39	39.025	34.938	35
EPTF-4044-20	40	44	20	52	2	40.05	40.15	44	44.025	39.938	40
EPTF-4044-30	40	44	30	52	2	40.05	40.15	44	44.025	39.938	40
EPTF-4044-40	40	44	40	52	2	40.05	40.15	44	44.025	39.938	40
EPTF-4550-12	45	50	12	58	2	45.05	45.15	50	50.025	44.938	45
EPTF-4550-20	45	50	20	58	2	45.05	45.15	50	50.025	44.938	45
EPTF-4550-50	45	50	50	58	2	45.05	45.15	50	50.025	44.938	45
EPTF-5055-20	50	55	20	63	2	50.05	50.15	55	55.03	49.938	50
EPTF-5055-30	50	55	30	63	2	50.05	50.15	55	55.03	49.938	50
EPTF-5055-50	50	55	50	63	2	50.05	50.15	55	55.03	49.938	50
EPTF-6065-50	60	65	50	73	2	60.06	60.18	65	65.03	59.926	60
EPTF-7075-50	70	75	50	83	2	70.06	70.18	75	75.03	69.926	70

规格代码

d1压入后公差

孔径H7

轴径h9

NO.

Min.

Max.

Min.

Max.

Min.

Max.

EPTF-0304-03

4.5

7.5

0.75

3.014

3.054

4.5

4.512

2.975

EPTF-0304-05

4.5

7.5

0.75

3.014

3.054

4.5

4.512

2.975

EPTF-0405-03

5.5

9.5

0.75

4.02

4.068

5.5

5.512

3.97

EPTF-0405-04

5.5

9.5

0.75

4.02

4.068

5.5

5.512

3.97

EPTF-0405-05

5.5

9.5

0.75

4.02

4.068

5.5

5.512

3.97

EPTF-0506-05

0.5

5.01

5.04

6.012

4.97

EPTF-0506-08

0.5

5.01

5.04

6.012

4.97

EPTF-0507-05

5.01

5.04

7.015

4.97

EPTF-0608-04

6.02

6.068

8.015

5.97

EPTF-0608-06

6.02

6.068

8.015

5.97

EPTF-0608-08

6.02

6.068

8.015

5.97

EPTF-0608-10

6.02

6.068

8.015

5.97

EPTF-0610-06

6.03

6.105

10.015

5.97

EPTF-0810-05

8.025

8.083

10.015

7.964

EPTF-0810-06

8.025

8.083

10.015

7.964

EPTF-0810-07

8.025

8.083

10.015

7.964

EPTF-0810-08

8.025

8.083

10.015

7.964

EPTF-0810-09

8.025

8.083

10.015

7.964

EPTF-0810-10

8.025

8.083

10.015

7.964

EPTF-0812-10

8.013

8.071

12.018

7.964

EPTF-1012-05

10.025

10.083

12.018

9.964

EPTF-1012-07

10.025

10.083

12.018

9.964

EPTF-1012-09

10.025

10.083

12.018

9.964

EPTF-1012-10

10.025

10.083

12.018

9.964

EPTF-1012-12

10.025

10.083

12.018

9.964

EPTF-1012-15

10.025

10.083

12.018

9.964

EPTF-1012-17

10.025

10.083

12.018

9.964

EPTF-1214-04

12.032

12.102

14.018

11.957

EPTF-1214-05

12.032

12.102

14.018

11.957

EPTF-1214-07

12.032

12.102

14.018

11.957

EPTF-1214-09

12.032

12.102

14.018

11.957

EPTF-1214-12

12.032

12.102

14.018

11.957

EPTF-1214-15

12.032

12.102

14.018

11.957

EPTF-1214-17

12.032

12.102

14.018

11.957

EPTF-1214-20

12.032

12.102

14.018

11.957

EPTF-1416-10

14.032

14.102

16.018

13.957

EPTF-1416-12

14.032

14.102

16.018

13.957

EPTF-1416-17

14.032

14.102

16.018

13.957

EPTF-1517-09

15.032

15.102

17.018

14.957

EPTF-1517-12

15.032

15.102

17.018

14.957

EPTF-1517-17

15.032

15.102

17.018

14.957

EPTF-1618-06

16.032

16.102

18.018

15.957

EPTF-1618-12

16.032

16.102

18.018

15.957

EPTF-1618-16

16.032

16.102

18.018

15.957

EPTF-1618-17

16.032

16.102

18.018

15.957

EPTF-1618-21

16.032

16.102

18.018

15.957

EPTF-1820-12

18.032

18.102

20.021

17.957

EPTF-1820-17

18.032

18.102

20.021

17.957

EPTF-1820-22

18.032

18.102

20.021

17.957

EPTF-2023-11.5

11.5

1.5

20.04

20.124

23.021

19.948

EPTF-2023-15.5

15.5

1.5

20.04

20.124

23.021

19.948

EPTF-2023-16.5

16.5

1.5

20.04

20.124

23.021

19.948

EPTF-2023-21

1.5

20.04

20.124

23.021

19.948

EPTF-2026-20

20.065

20.195

26.021

19.948

EPTF-2528-11.5

11.5

1.5

25.04

25.124

28.021

24.948

EPTF-2528-12

1.5

25.04

25.124

28.021

24.948

EPTF-2528-14.5

14.5

1.5

25.04

25.124

28.021

24.948

EPTF-2528-21

1.5

25.04

25.124

28.021

24.948

EPTF-2532-25

25.065

25.195

32.025

24.948

EPTF-3034-16

30.04

30.124

34.025

29.948

EPTF-3034-20

30.04

30.124

34.025

29.948

EPTF-3034-26

30.04

30.124

34.025

29.948

EPTF-3034-37

30.04

30.124

34.025

29.948

EPTF-3236-16

32.05

32.15

36.025

31.938

EPTF-3236-26

32.05

32.15

36.025

31.938

EPTF-3539-12

35.05

35.15

39.025

34.938

EPTF-3539-16

35.05

35.15

39.025

34.938

EPTF-3539-26

35.05

35.15

39.025

34.938

EPTF-4044-20

40.05

40.15

44.025

39.938

EPTF-4044-30

40.05

40.15

44.025

39.938

EPTF-4044-40

40.05

40.15

44.025

39.938

EPTF-4550-12

45.05

45.15

50.025

44.938

EPTF-4550-20

45.05

45.15

50.025

44.938

EPTF-4550-50

45.05

45.15

50.025

44.938

EPTF-5055-20

50.05

50.15

55.03

49.938

EPTF-5055-30

50.05

50.15

55.03

49.938

EPTF-5055-50

50.05

50.15

55.03

49.938

EPTF-6065-50

60.06

60.18

65.03

59.926

EPTF-7075-50

70.06

70.18

75.03

69.926

材料性能	测试标准	单位	EPT
颜色	-	-	深灰
密度	ISO1183	g /cm³	1.46
最大吸湿率，50%RH	ISO62	%	0.3
最大吸水率	ISO62	%	1.2
对钢动摩擦系数	ITSO25	μ	0.05-0.15
极限P.V值	ITSO26	N/mm²x m/s	0.4
弯曲模量	ISO178	MPa	2300
弯曲强度	ISO178	MPa	60
最大静载荷	ITSO27	MPa	35
最大动载荷	ITSO28	MPa	15
邵氏硬度	ISO868	D	75
连续运行温度	ITS029	℃	+80
短时运行温度	ITS029	℃	+120
最低运行温度	ITSO29	℃	-40
导热性	ISO22007	W/(m·K)	0.2
线性热膨胀系数	ISO11359	K^-1× 10^-5	10
阻燃等级	UL94	Class	HB
体电阻率	IEC60093	Ω.cm	>10¹³
面电阻率	IEC60093	Ω	>10¹²

轴承PV值

EPT系列轴承最大运行PV值为0.4N/mm2 x m/s; 由此决定轴承所承受的载荷与速度成反比，详情查阅图表EPT-1。

轴承的载荷、速度、温度

EPT系列轴承可承受最大静载荷为35Mpa，在此载荷下轴承的最大压缩变形量参考图表EPT-2;轴承实际工作载荷略小于35Mpa，载荷还受到运行速度以及温度的影响，速度越快(Vmax:1.0m/s)会导致摩擦温度上升，而温度上升(Tmax:80℃)会导致轴承的承载能力逐渐减弱，载荷随轴承工作温度变化情况参考图表EPT-3。

轴承的摩擦系数

EPT轴承摩擦系数受运动速度以及轴承载荷变化影响相对较小(见图表EPT-4与EPT-5)，这也是EPT作为塑料轴承通用型号选择的因素;此轴承可以一直保持比较低的摩擦系数从而确保整个摩擦磨损性能的优越性。根据图表EPT-6显示EPT轴承的摩擦系数还会受到对磨轴表面粗糙度的影响而发生变化，我们推荐此轴承使用轴表面粗糙度值为Ra0.3~0.5um。

EPT	干运行	油脂	油	水
摩擦系数 μ	0.05-0.15	0.09	0.04	0.04

磨损与轴材料

轴材料对轴承的磨损有很大影响，但EPT轴承适合几乎所有的轴材料;通过图表EPT-7与图表EPT-8可以看出当使用硬铬钢轴或硬化钢轴以及硬化铝轴时EPT轴承的磨损特性都非常出色。

化学抗性

EPT塑料轴承能抵抗弱碱、弱酸以及各类润滑油的腐蚀。

吸水性

在标准大气压中，EPT塑料轴承的吸湿率为0.3%，浸泡水中最高吸水率为1.2%；较低的吸水率只有在极端应用中才需要更改轴承设计。

抗UV性能

EPT长久暴露在紫外线下颜色基本不会发生改变。材料的硬度，抗压强度和耐磨性能都不会改变。

安装公差

EPT塑料轴承压装后公差

直径 [mm]	EPT E10 [mm]	座孔 H7 [mm]	轴 h9 [mm]
> 0~3	+0.014~+0.054	0~+0.010	0~-0.025
> 3~6	+0.020~+0.068	0~+0.012	0~-0.030
> 6~10	+0.025~+0.083	0~+0.015	0~-0.036
> 10~18	+0.032~+0.102	0~+0.018	0~-0.043
> 18~30	+0.040~+0.124	0~+0.021	0~-0.052
> 30~50	+0.050~+0.150	0~+0.025	0~-0.062
> 50~80	+0.060~+0.180	0~+0.030	0~-0.074
> 80~120	+0.072~+0.212	0~+0.035	0~-0.087
> 120~180	+0.085~+0.245	0~+0.040	0~-0.100
