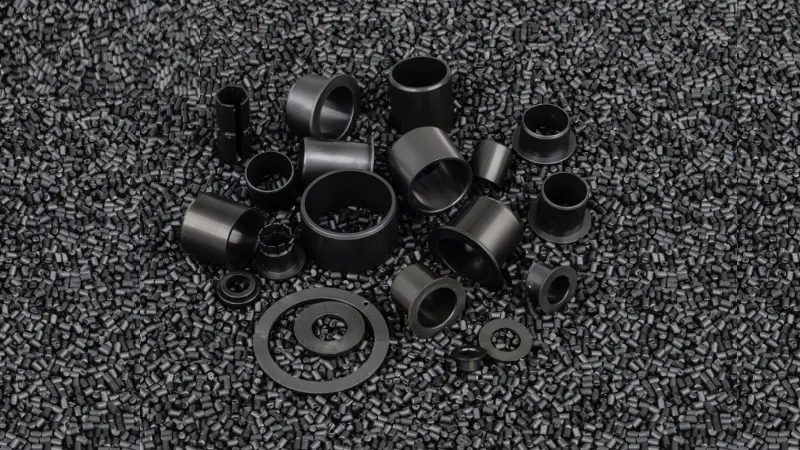

产品特性

通用性较为广泛的塑料轴承。凭借出色的耐磨性能和合理的价格从而选择它作为理想的轴承材料。

  • 连续使用温度：-40℃~ 80℃

  • 适合多数中低载荷场合

  • 自润滑、免维护

  • 不同的轴材料，具有很好的耐磨性

  • 摩擦系数较低


        典型应用领域：

        自动化    印刷行业    办公设备    户外遮阳设备


点击天猫店购买

表格显示不全，可左右移动查看。

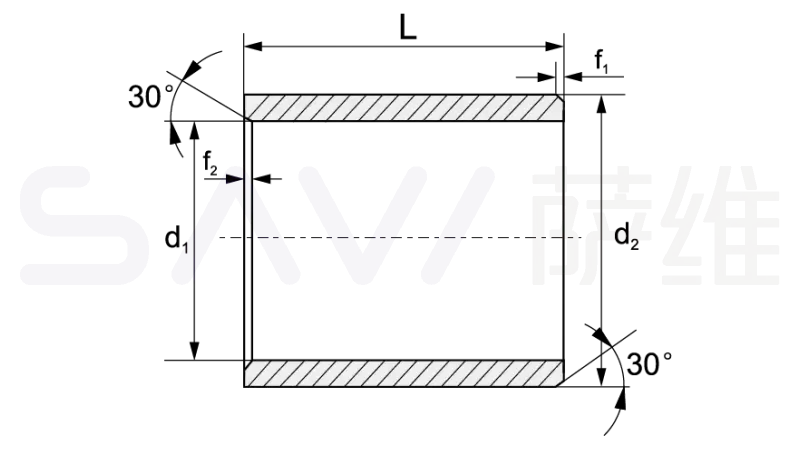

 规格代码mmmmmmd1压入后公差d1压入后公差孔径H7孔径H7轴径h9轴径h9

NO.

d1d2LMin.Max.Min.Max.Min.Max.
EPT-0304-0534.553.0143.0544.54.5122.9753
EPT-0304-0634.563.0143.0544.54.5122.9753
EPT-0405-0445.544.024.0685.55.5123.974
EPT-0405-0545.554.024.0685.55.5123.974
EPT-0405-0645.564.024.0685.55.5123.974
EPT-0405-0845.584.024.0685.55.5123.974
EPT-0405-1045.5104.024.0685.55.5123.974
EPT-0506-055655.015.0466.0124.975
EPT-0506-075675.015.0466.0124.975
EPT-0607-086786.016.05877.0155.976
EPT-0608-066866.026.06888.0155.976
EPT-0608-086886.026.06888.0155.976
EPT-0608-1068106.026.06888.0155.976
EPT-0810-0681068.0258.0831010.0157.9648
EPT-0810-0881088.0258.0831010.0157.9648
EPT-0810-10810108.0258.0831010.0157.9648
EPT-0810-12810128.0258.0831010.0157.9648
EPT-0810-16810168.0258.0831010.0157.9648
EPT-0810-21810218.0258.0831010.0157.9648
EPT-0812-10812108.0138.0711212.0187.9648
EPT-1012-041012410.02510.0831212.0189.96410
EPT-1012-051012510.02510.0831212.0189.96410
EPT-1012-061012610.02510.0831212.0189.96410
EPT-1012-081012810.02510.0831212.0189.96410
EPT-1012-1010121010.02510.0831212.0189.96410
EPT-1012-1210121210.02510.0831212.0189.96410
EPT-1012-1510121510.02510.0831212.0189.96410
EPT-1012-2010122010.02510.0831212.0189.96410
EPT-1014-1010141010.01310.0711414.0189.96410
EPT-1014-1610141610.01310.0711414.0189.96410
EPT-1214-061214612.03212.1021414.01811.95712
EPT-1214-081214812.03212.1021414.01811.95712
EPT-1214-091214912.03212.1021414.01811.95712
EPT-1214-1012141012.03212.1021414.01811.95712
EPT-1214-1212141212.03212.1021414.01811.95712
EPT-1214-1512141512.03212.1021414.01811.95712
EPT-1214-2012142012.03212.1021414.01811.95712
EPT-1214-3012143012.03212.1021414.01811.95712
EPT-1416-051416514.03214.1021616.01813.95714
EPT-1416-081416814.03214.1021616.01813.95714
EPT-1416-1014161014.03214.1021616.01813.95714
EPT-1416-1514161514.03214.1021616.01813.95714
EPT-1416-2014162014.03214.1021616.01813.95714
EPT-1416-2514162514.03214.1021616.01813.95714
EPT-1517-061517615.03215.1021717.01814.95715
EPT-1517-1015171015.03215.1021717.01814.95715
EPT-1517-1215171215.03215.1021717.01814.95715
EPT-1517-1515171515.03215.1021717.01814.95715
EPT-1517-2015172015.03215.1021717.01814.95715
EPT-1517-2515172515.03215.1021717.01814.95715
EPT-1618-1016181016.03216.1021818.01815.95716
EPT-1618-1216181216.03216.1021818.01815.95716
EPT-1618-1516181516.03216.1021818.01815.95716
EPT-1618-2016182016.03216.1021818.01815.95716
EPT-1618-2516182516.03216.1021818.01815.95716
EPT-1820-1018201018.03218.1022020.02117.95718
EPT-1820-1518201518.03218.1022020.02117.95718
EPT-1820-2018202018.03218.1022020.02117.95718
EPT-2023-1020231020.0420.1242323.02119.94820
EPT-2023-1520231520.0420.1242323.02119.94820
EPT-2023-2020232020.0420.1242323.02119.94820
EPT-2023-2520232520.0420.1242323.02119.94820
EPT-2023-3020233020.0420.1242323.02119.94820
EPT-2225-1522251520.0420.1242525.02121.94822
EPT-2528-1225281225.0425.1242828.02124.94825
EPT-2528-1525281525.0425.1242828.02124.94825
EPT-2528-2025282025.0425.1242828.02124.94825
EPT-2528-2525282525.0425.1242828.02124.94825
EPT-2528-3025283025.0425.1242828.02124.94825
EPT-2532-3025323025.06525.1953232.02524.94825
EPT-2832-2028322028.06528.1953232.02527.94828
EPT-2832-2528322528.06528.1953232.02527.94828
EPT-2832-3028323028.06528.1953232.02527.94828
EPT-3034-2030342030.0430.1243434.02529.94830
EPT-3034-2530342530.0430.1243434.02529.94830
EPT-3034-3030343030.0430.1243434.02529.94830
EPT-3034-4030344030.0430.1243434.02529.94830
EPT-3236-2032362032.0532.153636.02531.93832
EPT-3236-3032363032.0532.153636.02531.93832
EPT-3539-2035392035.0535.153939.02534.93835
EPT-3539-3035393035.0535.153939.02534.93835
EPT-3539-4035394035.0535.153939.02534.93835
EPT-4044-2040442040.0540.154444.02539.93840
EPT-4044-3040443040.0540.154444.02539.93840
EPT-4044-3540443540.0540.154444.02539.93840
EPT-4550-2045502045.0545.155050.02544.93845
EPT-4550-3045503045.0545.155050.02544.93845
EPT-4550-4045504045.0545.155050.02544.93845
EPT-5055-2050552050.0550.155555.0349.93850
EPT-5055-3050553050.0550.155555.0349.93850
EPT-5055-4050554050.0550.155555.0349.93850
EPT-5055-5050555050.0550.155555.0349.93850
EPT-6065-5060655060.0660.186565.0359.92660
EPT-7075-5070755070.0670.187575.0369.92670
EPT-7075-6070756070.0670.187575.0369.92670


材料性能测试标准单位EPT
颜色--深灰
密度ISO1183g /cm31.46
最大吸湿率，50%RHISO62%0.3
最大吸水率ISO62%1.2
对钢动摩擦系数ITSO25μ0.05-0.15
极限P.V值ITSO26N/mm2 x m/s0.4
弯曲模量ISO178MPa2300
弯曲强度ISO178MPa60
最大静载荷ITSO27MPa35
最大动载荷ITSO28MPa15
邵氏硬度ISO868D75
连续运行温度ITS029℃+80
短时运行温度ITS029℃+120
最低运行温度ITSO29℃-40
导热性ISO22007W/(m·K)0.2
线性热膨胀系数ISO11359K-1× 10-510
阻燃等级UL94ClassHB
体电阻率IEC60093Ω.cm

>1013

面电阻率IEC60093Ω

>1012



轴承PV值

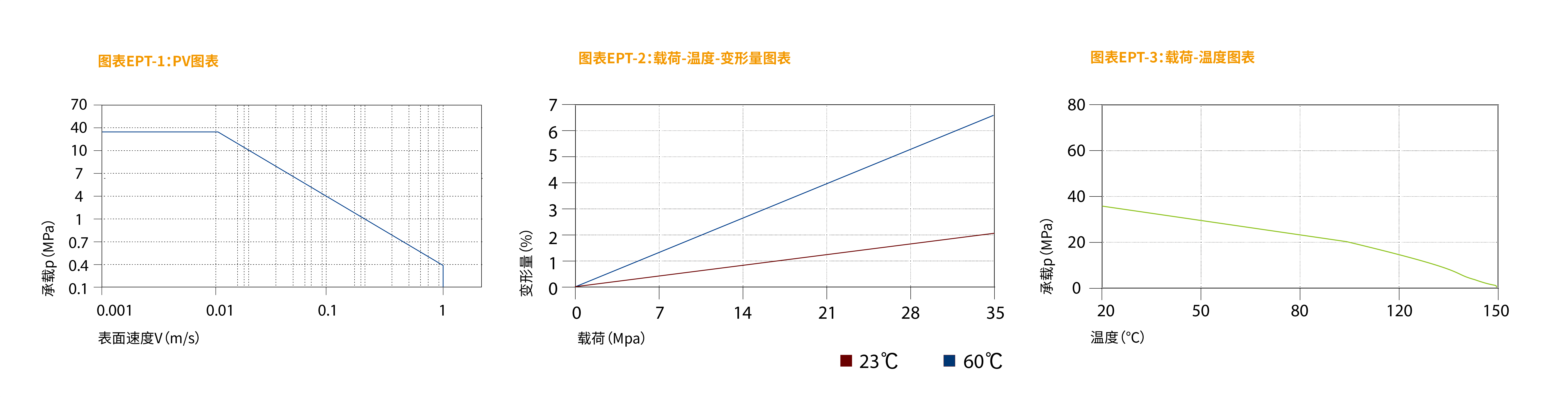

EPT系列轴承最大运行PV值为0.4N/mm2 x m/s; 由此决定轴承所承受的载荷与速度成反比，详情查阅图表EPT-1。



轴承的载荷、速度、温度

EPT系列轴承可承受最大静载荷为35Mpa，在此载荷下轴承的最大压缩变形量参考图表EPT-2;轴承实际工作载荷略小于35Mpa，载荷还受到运行速度以及温度的影响，速度越快(Vmax:1.0m/s)会导致摩擦温度上升，而温度上升(Tmax:80℃)会导致轴承的承载能力逐渐减弱，载荷随轴承工作温度变化情况参考图表EPT-3。


轴承的摩擦系数

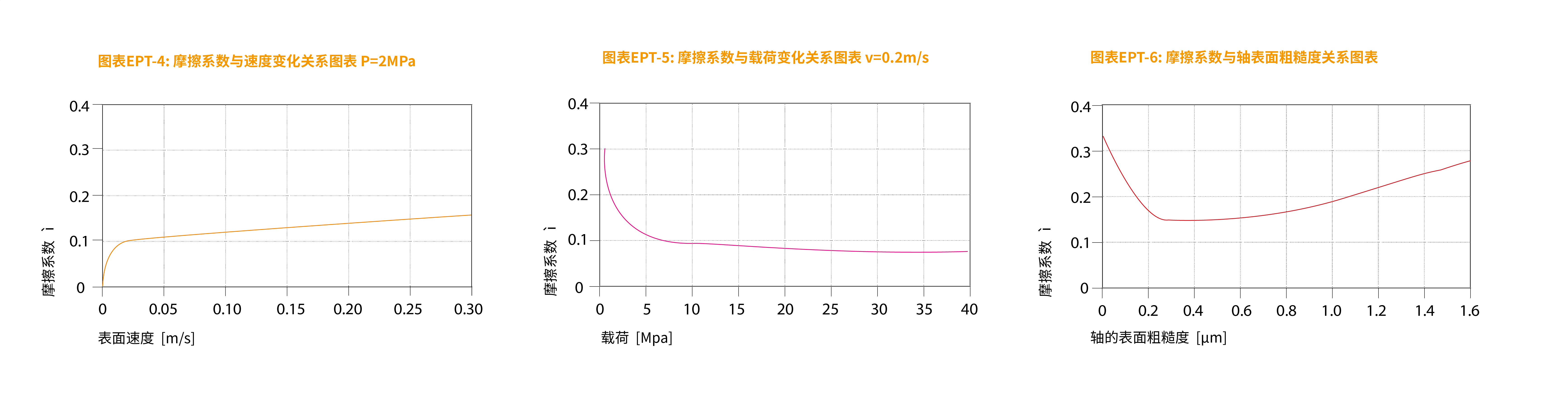

EPT轴承摩擦系数受运动速度以及轴承载荷变化影响相对较小(见图表EPT-4与EPT-5)，这也是EPT作为塑料轴承通用型号选择的因素;此轴承可以一直保持比较低的摩擦系数从而确保整个摩擦磨损性能的优越性。根据图表EPT-6显示EPT轴承的摩擦系数还会受到对磨轴表面粗糙度的影响而发生变化，我们推荐此轴承使用轴表面粗糙度值为Ra0.3~0.5um。


EPT干运行油脂油水
摩擦系数 μ0.05-0.150.090.040.04


磨损与轴材料

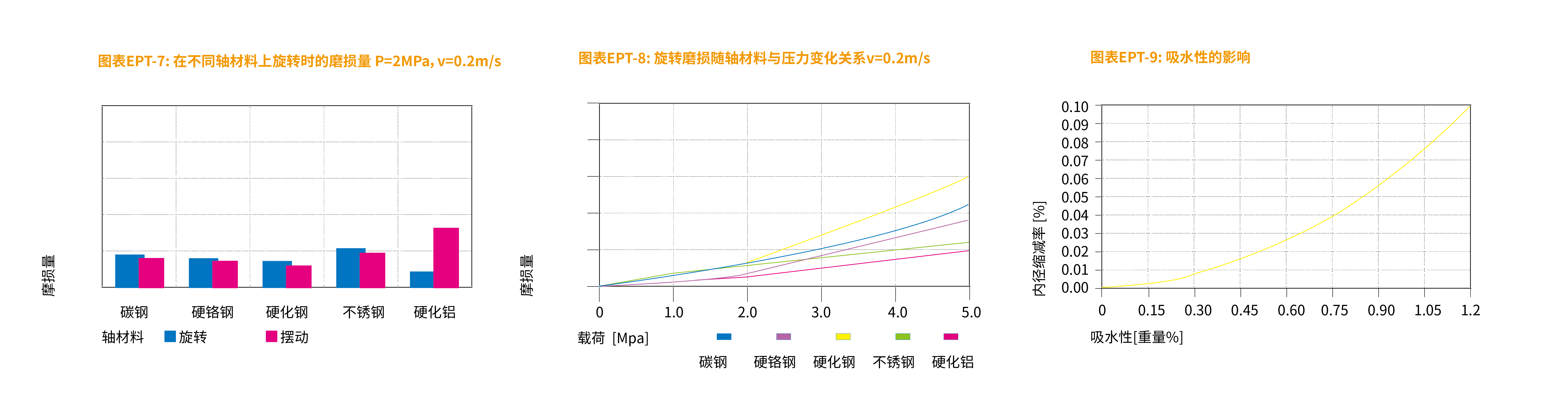

轴材料对轴承的磨损有很大影响，但EPT轴承适合几乎所有的轴材料;通过图表EPT-7与图表EPT-8可以看出当使用硬铬钢轴或硬化钢轴以及硬化铝轴时EPT轴承的磨损特性都非常出色。

化学抗性

EPT塑料轴承能抵抗弱碱、弱酸以及各类润滑油的腐蚀。


吸水性

在标准大气压中，EPT塑料轴承的吸湿率为0.3%，浸泡水中最高吸水率为1.2%；较低的吸水率只有在极端应用中才需要更改轴承设计。


抗UV性能

EPT长久暴露在紫外线下颜色基本不会发生改变。材料的硬度，抗压强度和耐磨性能都不会改变。


安装公差

EPT塑料轴承压装后公差

直径


 [mm]

EPT

E10 [mm]		座孔

H7 [mm]		轴

h9 [mm]
> 0~3+0.014~+0.0540~+0.0100~-0.025
> 3~6+0.020~+0.0680~+0.0120~-0.030
> 6~10+0.025~+0.0830~+0.0150~-0.036
> 10~18+0.032~+0.1020~+0.0180~-0.043
> 18~30+0.040~+0.1240~+0.0210~-0.052
> 30~50+0.050~+0.1500~+0.0250~-0.062
> 50~80+0.060~+0.1800~+0.0300~-0.074
> 80~120+0.072~+0.2120~+0.0350~-0.087
> 120~180+0.085~+0.2450~+0.0400~-0.100
