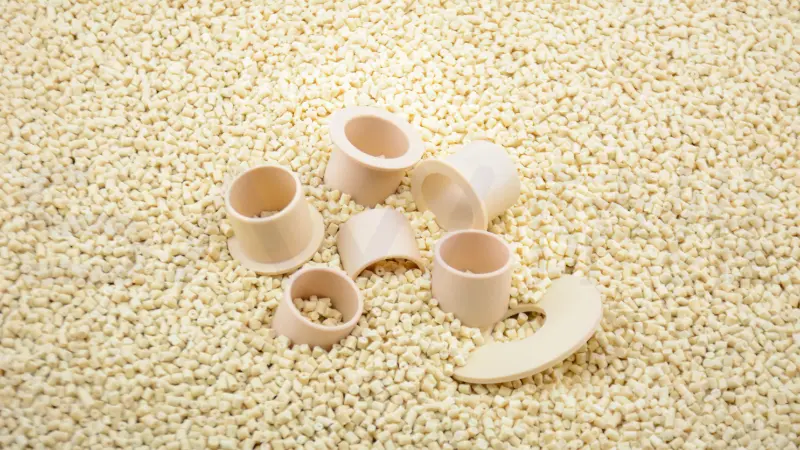

规格代码	d1	d2	L	d3	t	d1压入后公差	d1压入后公差	孔径H7	孔径H7	轴径h9	轴径h9
NO.	mm	mm	mm	mm	mm	Min.	Max.	Min.	Max.	Min.	Max.
EPWF-0304-03	3	4.5	3	7.5	0.75	3.014	3.054	4.5	4.512	2.975	3
EPWF-0304-05	3	4.5	5	7.5	0.75	3.014	3.054	4.5	4.512	2.975	3
EPWF-0405-03	4	5.5	3	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPWF-0405-04	4	5.5	4	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPWF-0405-05	4	5.5	5	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPWF-0506-05	5	6	5	10	0.5	5.1	5.04	6	6.012	4.97	5
EPWF-0506-08	5	6	8	10	0.5	5.1	5.04	6	6.012	4.97	5
EPWF-0507-05	5	7	5	11	1	5.02	5.068	7	7.015	4.97	5
EPWF-0608-04	6	8	4	12	1	6.02	6.068	8	8.015	5.97	6
EPWF-0608-06	6	8	6	12	1	6.02	6.068	8	8.015	5.97	6
EPWF-0608-08	6	8	8	12	1	6.02	6.068	8	8.015	5.97	6
EPWF-0608-10	6	8	10	12	1	6.02	6.068	8	8.015	5.97	6
EPWF-0610-06	6	10	6	14	2	6.03	6.105	10	10.015	5.97	6
EPWF-0810-05	8	10	5	15	1	8.025	8.083	10	10.015	7.964	8
EPWF-0810-06	8	10	6	15	1	8.025	8.083	10	10.015	7.964	8
EPWF-0810-07	8	10	7	15	1	8.025	8.083	10	10.015	7.964	8
EPWF-0810-08	8	10	8	15	1	8.025	8.083	10	10.015	7.964	8
EPWF-0810-09	8	10	9	15	1	8.025	8.083	10	10.015	7.964	8
EPWF-0810-10	8	10	10	15	1	8.025	8.083	10	10.015	7.964	8
EPWF-1012-05	10	12	5	18	1	10.025	10.083	12	12.018	9.964	10
EPWF-1012-07	10	12	7	18	1	10.025	10.083	12	12.018	9.964	10
EPWF-1012-09	10	12	9	18	1	10.025	10.083	12	12.018	9.964	10
EPWF-1012-10	10	12	10	18	1	10.025	10.083	12	12.018	9.964	10
EPWF-1012-12	10	12	12	18	1	10.025	10.083	12	12.018	9.964	10
EPWF-1012-15	10	12	15	18	1	10.025	10.083	12	12.018	9.964	10
EPWF-1012-17	10	12	17	18	1	10.025	10.083	12	12.018	9.964	10
EPWF-1214-04	12	14	4	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1214-05	12	14	5	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1214-07	12	14	7	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1214-09	12	14	9	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1214-12	12	14	12	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1214-15	12	14	15	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1214-17	12	14	17	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1214-20	12	14	20	20	1	12.032	12.102	14	14.018	11.957	12
EPWF-1416-10	14	16	10	22	1	14.032	14.102	16	16.018	13.957	14
EPWF-1416-12	14	16	12	22	1	14.032	14.102	16	16.018	13.957	14
EPWF-1416-17	14	16	17	22	1	14.032	14.102	16	16.018	13.957	14
EPWF-1517-09	15	17	9	23	1	15.032	15.102	17	17.018	14.957	15
EPWF-1517-12	15	17	12	23	1	15.032	15.102	17	17.018	14.957	15
EPWF-1517-17	15	17	17	23	1	15.032	15.102	17	17.018	14.957	15
EPWF-1618-06	16	18	6	24	1	16.032	16.102	18	18.018	15.957	16
EPWF-1618-12	16	18	12	24	1	16.032	16.102	18	18.018	15.957	16
EPWF-1618-16	16	18	16	24	1	16.032	16.102	18	18.018	15.957	16
EPWF-1618-17	16	18	17	24	1	16.032	16.102	18	18.018	15.957	16
EPWF-1618-21	16	18	21	24	1	16.032	16.102	18	18.018	15.957	16
EPWF-1820-12	18	20	12	26	1	18.032	18.102	20	20.021	17.957	18
EPWF-1820-17	18	20	17	26	1	18.032	18.102	20	20.021	17.957	18
EPWF-1820-22	18	20	22	26	1	18.032	18.102	20	20.021	17.957	18
EPWF-2023-11.5	20	23	11.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPWF-2023-15.5	20	23	15.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPWF-2023-16.5	20	23	16.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPWF-2023-21	20	23	21	30	1.5	20.04	20.124	23	23.021	19.948	20
EPWF-2026-20	20	26	20	32	3	20.065	20.195	26	26.021	19.948	20
EPWF-2528-11.5	25	28	11.5	35	1.5	25.04	25.124	28	28.021	24.948	25
EPWF-2528-12	25	28	12	35	1.5	25.04	25.124	28	28.021	24.948	25
EPWF-2528-14.5	25	28	14.5	35	1.5	25.04	25.124	28	28.021	24.948	25
EPWF-2528-21	25	28	21	35	1.5	25.04	25.124	28	28.021	24.948	25
EPWF-2532-25	25	32	25	38	4	25.065	25.195	32	32.025	24.948	25
EPWF-3034-16	30	34	16	42	2	30.04	30.124	34	34.025	29.948	30
EPWF-3034-20	30	34	20	42	2	30.04	30.124	34	34.025	29.948	30
EPWF-3034-26	30	34	26	42	2	30.04	30.124	34	34.025	29.948	30
EPWF-3034-37	30	34	37	42	2	30.04	30.124	34	34.025	29.948	30
EPWF-3539-12	35	39	12	47	2	35.05	35.15	39	39.025	34.938	35
EPWF-3539-16	35	39	16	47	2	35.05	35.15	39	39.025	34.938	35
EPWF-3539-26	35	39	26	47	2	35.05	35.15	39	39.025	34.938	35
EPWF-4044-20	40	44	20	52	2	40.05	40.15	44	44.025	39.938	40
EPWF-4044-30	40	44	30	52	2	40.05	40.15	44	44.025	39.938	40
EPWF-4044-40	40	44	40	52	2	40.05	40.15	44	44.025	39.938	40
EPWF-4550-12	45	50	12	58	2	45.05	45.15	50	50.025	44.938	45
EPWF-4550-20	45	50	20	58	2	45.05	45.15	50	50.025	44.938	45
EPWF-4550-50	45	50	50	58	2	45.05	45.15	50	50.025	44.938	45
EPWF-5055-20	50	55	20	63	2	50.05	50.15	55	55.03	49.938	50
EPWF-5055-30	50	55	30	63	2	50.05	50.15	55	55.03	49.938	50
EPWF-5055-50	50	55	50	63	2	50.05	50.15	55	55.03	49.938	50
EPWF-6065-50	60	65	50	73	2	60.06	60.18	65	65.03	59.926	60
EPWF-7075-50	70	75	50	83	2	70.06	70.18	75	75.03	69.926	70

规格代码

d1压入后公差

孔径H7

轴径h9

NO.

Min.

Max.

Min.

Max.

Min.

Max.

EPWF-0304-03

4.5

7.5

0.75

3.014

3.054

4.5

4.512

2.975

EPWF-0304-05

4.5

7.5

0.75

3.014

3.054

4.5

4.512

2.975

EPWF-0405-03

5.5

9.5

0.75

4.02

4.068

5.5

5.512

3.97

EPWF-0405-04

5.5

9.5

0.75

4.02

4.068

5.5

5.512

3.97

EPWF-0405-05

5.5

9.5

0.75

4.02

4.068

5.5

5.512

3.97

EPWF-0506-05

0.5

5.1

5.04

6.012

4.97

EPWF-0506-08

0.5

5.1

5.04

6.012

4.97

EPWF-0507-05

5.02

5.068

7.015

4.97

EPWF-0608-04

6.02

6.068

8.015

5.97

EPWF-0608-06

6.02

6.068

8.015

5.97

EPWF-0608-08

6.02

6.068

8.015

5.97

EPWF-0608-10

6.02

6.068

8.015

5.97

EPWF-0610-06

6.03

6.105

10.015

5.97

EPWF-0810-05

8.025

8.083

10.015

7.964

EPWF-0810-06

8.025

8.083

10.015

7.964

EPWF-0810-07

8.025

8.083

10.015

7.964

EPWF-0810-08

8.025

8.083

10.015

7.964

EPWF-0810-09

8.025

8.083

10.015

7.964

EPWF-0810-10

8.025

8.083

10.015

7.964

EPWF-1012-05

10.025

10.083

12.018

9.964

EPWF-1012-07

10.025

10.083

12.018

9.964

EPWF-1012-09

10.025

10.083

12.018

9.964

EPWF-1012-10

10.025

10.083

12.018

9.964

EPWF-1012-12

10.025

10.083

12.018

9.964

EPWF-1012-15

10.025

10.083

12.018

9.964

EPWF-1012-17

10.025

10.083

12.018

9.964

EPWF-1214-04

12.032

12.102

14.018

11.957

EPWF-1214-05

12.032

12.102

14.018

11.957

EPWF-1214-07

12.032

12.102

14.018

11.957

EPWF-1214-09

12.032

12.102

14.018

11.957

EPWF-1214-12

12.032

12.102

14.018

11.957

EPWF-1214-15

12.032

12.102

14.018

11.957

EPWF-1214-17

12.032

12.102

14.018

11.957

EPWF-1214-20

12.032

12.102

14.018

11.957

EPWF-1416-10

14.032

14.102

16.018

13.957

EPWF-1416-12

14.032

14.102

16.018

13.957

EPWF-1416-17

14.032

14.102

16.018

13.957

EPWF-1517-09

15.032

15.102

17.018

14.957

EPWF-1517-12

15.032

15.102

17.018

14.957

EPWF-1517-17

15.032

15.102

17.018

14.957

EPWF-1618-06

16.032

16.102

18.018

15.957

EPWF-1618-12

16.032

16.102

18.018

15.957

EPWF-1618-16

16.032

16.102

18.018

15.957

EPWF-1618-17

16.032

16.102

18.018

15.957

EPWF-1618-21

16.032

16.102

18.018

15.957

EPWF-1820-12

18.032

18.102

20.021

17.957

EPWF-1820-17

18.032

18.102

20.021

17.957

EPWF-1820-22

18.032

18.102

20.021

17.957

EPWF-2023-11.5

11.5

1.5

20.04

20.124

23.021

19.948

EPWF-2023-15.5

15.5

1.5

20.04

20.124

23.021

19.948

EPWF-2023-16.5

16.5

1.5

20.04

20.124

23.021

19.948

EPWF-2023-21

1.5

20.04

20.124

23.021

19.948

EPWF-2026-20

20.065

20.195

26.021

19.948

EPWF-2528-11.5

11.5

1.5

25.04

25.124

28.021

24.948

EPWF-2528-12

1.5

25.04

25.124

28.021

24.948

EPWF-2528-14.5

14.5

1.5

25.04

25.124

28.021

24.948

EPWF-2528-21

1.5

25.04

25.124

28.021

24.948

EPWF-2532-25

25.065

25.195

32.025

24.948

EPWF-3034-16

30.04

30.124

34.025

29.948

EPWF-3034-20

30.04

30.124

34.025

29.948

EPWF-3034-26

30.04

30.124

34.025

29.948

EPWF-3034-37

30.04

30.124

34.025

29.948

EPWF-3539-12

35.05

35.15

39.025

34.938

EPWF-3539-16

35.05

35.15

39.025

34.938

EPWF-3539-26

35.05

35.15

39.025

34.938

EPWF-4044-20

40.05

40.15

44.025

39.938

EPWF-4044-30

40.05

40.15

44.025

39.938

EPWF-4044-40

40.05

40.15

44.025

39.938

EPWF-4550-12

45.05

45.15

50.025

44.938

EPWF-4550-20

45.05

45.15

50.025

44.938

EPWF-4550-50

45.05

45.15

50.025

44.938

EPWF-5055-20

50.05

50.15

55.03

49.938

EPWF-5055-30

50.05

50.15

55.03

49.938

EPWF-5055-50

50.05

50.15

55.03

49.938

EPWF-6065-50

60.06

60.18

65.03

59.926

EPWF-7075-50

70.06

70.18

75.03

69.926

材料性能	测试标准	单位	EPW
颜色	-	-	米黄
密度	ISO1183	g /cm³	1.25
最大吸湿率，50%RH	ISO62	%	1.3
最大吸水率	ISO62	%	6.5
对钢动摩擦系数	ITSO25	μ	0.09-0.20
极限P.V值	ITSO26	N/mm² x m/s	0.50
弯曲模量	ISO178	M Pa	3200
弯曲强度	ISO178	M Pa	75
最大静载荷	ITSO27	M Pa	60
最大动载荷	ITSO28	M Pa	25
邵氏硬度	ISO868	D	75
连续运行温度	ITS029	℃	+90
短时运行温度	ITS029	℃	+180
最低运行温度	ITSO29	℃	-40
导热性	ISO22007	W/(m·K)	0.24
线性热膨胀系数	ISO11359	K^-1 × 10^-5	9
阻燃等级	UL94	Class	HB
体电阻率	IEC60093	Ω·cm	> 10¹³
面电阻率	IEC60093	Ω	> 10¹²

轴承PV值

EPW塑料轴承最大运行PV值为0.5N/mm2xm/s;由此决定轴承所承受的载荷与速度成反比，详情查阅图表EPW-1。

轴承的载荷、速度、温度

EPW塑料轴承可承受最大静载荷为60Mpa，在此载荷下轴承的最大压缩变形量参考图表EPW-2；轴承实际工作载荷略小于60Mpa，载荷还受到运行速度以及温度的影响，速度越快(Vmax:1.0m/s)会导致摩擦温度上升，而温度上升(Tmax:90°C)会导致轴承的承载能力逐渐减弱，载荷随轴承工作温度变化情况参考图表EPW-3。

轴承的摩擦系数

图表EPW-4表明EPW塑料轴承的摩擦系数随着运动速度的变化影响较小，而图表EPW-5表明EPW塑料轴承的摩擦系数随着载荷的增加明显减小，在载荷超过20Mpa是逐渐趋于平稳;图表EPW-6表明EPW塑料轴承的摩擦系数受轴粗糙度的影响也相对较小;虽然如此，我们还是建议轴的表面不能太光滑，也不能过于粗糙，推荐使用轴的粗糙度为Ra0.3~0.6um。

EPW	干运行	油脂	油	水
摩擦系数 μ	0.09-0.20	0.09	0.04	0.04

磨损与轴材料

图表EPW-7表明EPW塑料轴承在2Mpa下做旋转运动时，磨损随着轴材料的变化较大;通过实验表明EPW塑料轴承在做旋转运动时比较适合用于硬铬轴，硬化钢轴和硬铬轴上用于EPW塑料轴承能获得良好的运行效果。图表EPW-8表明硬铬轴更适合用于高载荷下的EPW塑料轴承，随着载荷的不断增加，轴承的磨损速率却变化较小，图表EPW-8表明EPW塑料轴承在不同载荷下的差异。

化学抗性

EPW塑料轴承能抵抗弱碱以及各类润滑油的腐蚀。

吸水性

EPW塑料轴承在标准大气压中的吸湿率为1.3%，浸泡在水中最高吸水率为6.5%;由于高吸水率的特性，我们必须考虑此轴承的应用环境。

抗UV性能

EPW塑料轴承长久暴露在紫外线下颜色会发生褪变。材料性能基本都不会发生改变。

安装公差

EPW塑料轴承压装后公差

直径 [mm]	EPW E10 [mm]	座孔 H7 [mm]	轴 h9 [mm]
> 0~3	+0.014~+0.054	0~+0.010	0~-0.025
> 3~6	+0.020~+0.068	0~+0.012	0~-0.030
> 6~10	+0.025~+0.083	0~+0.015	0~-0.036
> 10~18	+0.032~+0.102	0~+0.018	0~-0.043
> 18~30	+0.040~+0.124	0~+0.021	0~-0.052
> 30~50	+0.050~+0.150	0~+0.025	0~-0.062
> 50~80	+0.060~+0.180	0~+0.030	0~-0.074
> 80~120	+0.072~+0.212	0~+0.035	0~-0.087
> 120~180	+0.085~+0.245	0~+0.040	0~-0.100
