规格代码	d1	d2	L	d3	t	d1压入后公差	d1压入后公差	孔径H7	孔径H7	轴径h9	轴径h9
NO.	mm	mm	mm	mm	mm	Min.	Max.	Min.	Max.	Min.	Max.
EPGF-0304-03	3	4.5	3	7.5	0.75	3.014	3.054	4.5	4.512	2.975	3
EPGF-0304-05	3	4.5	5	7.5	0.75	3.014	3.054	4.5	4.512	2.975	3
EPGF-0405-04	4	5.5	4	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPGF-0405-06	4	5.5	6	9.5	0.75	4.02	4.068	5.5	5.512	3.97	4
EPGF-0506-05	5	6	5	10	0.5	5.01	5.04	6	6.012	4.97	5
EPGF-0506-06	5	6	6	10	0.5	5.01	5.04	6	6.012	4.97	5
EPGF-0507-04	5	7	4	10	0.5	5.01	5.04	6	6.012	4.97	5
EPGF-0507-05	5	7	5	11	1	5.01	5.04	7	7.015	4.97	5
EPGF-0507-07	5	7	7	10	0.5	5.01	5.04	6	6.012	4.97	5
EPGF-0507-10	5	7	10	10	0.5	5.01	5.04	6	6.012	4.97	5
EPGF-0608-04	6	8	4	12	1	6.02	6.068	8	8.015	5.97	6
EPGF-0608-05	6	8	5	12	1	6.02	6.068	8	8.015	5.97	6
EPGF-0608-06	6	8	6	12	1	6.02	6.068	8	8.015	5.97	6
EPGF-0608-07	6	8	7	12	1	6.02	6.068	8	8.015	5.97	6
EPGF-0608-08	6	8	8	12	1	6.02	6.068	8	8.015	5.97	6
EPGF-0608-10	6	8	10	12	1	6.02	6.068	8	8.015	5.97	6
EPGF-0810-03	8	10	3	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-0810-05	8	10	5	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-0810-06	8	10	6	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-0810-07	8	10	7	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-0810-08	8	10	8	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-0810-10	8	10	10	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-0810-15	8	10	15	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-0810-30	8	10	30	15	1	8.025	8.083	10	10.015	7.964	8
EPGF-1012-04	10	12	4	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-05	10	12	5	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-06	10	12	6	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-07	10	12	7	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-08	10	12	8	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-09	10	12	9	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-10	10	12	10	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-12	10	12	12	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-15	10	12	15	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1012-17	10	12	17	18	1	10.025	10.083	12	12.018	9.964	10
EPGF-1214-05	12	14	5	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-06	12	14	6	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-07	12	14	7	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-08	12	14	8	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-09	12	14	9	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-10	12	14	10	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-11	12	14	11	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-12	12	14	12	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-15	12	14	15	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-17	12	14	17	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1214-20	12	14	20	20	1	12.032	12.102	14	14.018	11.957	12
EPGF-1416-03	14	16	3	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1416-04	14	16	4	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1416-06	14	16	6	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1416-08	14	16	8	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1416-10	14	16	10	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1416-12	14	16	12	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1416-17	14	16	17	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1416-20	14	16	20	22	1	14.032	14.102	16	16.018	13.957	14
EPGF-1517-05	15	17	5	23	1	15.032	15.102	17	17.018	14.957	15
EPGF-1517-09	15	17	9	23	1	15.032	15.102	17	17.018	14.957	15
EPGF-1517-12	15	17	12	23	1	15.032	15.102	17	17.018	14.957	15
EPGF-1517-15	15	17	15	23	1	15.032	15.102	17	17.018	14.957	15
EPGF-1517-17	15	17	17	23	1	15.032	15.102	17	17.018	14.957	15
EPGF-1517-20	15	17	20	23	1	15.032	15.102	17	17.018	14.957	15
EPGF-1618-04	16	18	4	24	1	16.032	16.102	18	18.018	15.957	16
EPGF-1618-06	16	18	6	24	1	16.032	16.102	18	18.018	15.957	16
EPGF-1618-09	16	18	9	24	1	16.032	16.102	18	18.018	15.957	16
EPGF-1618-12	16	18	12	24	1	16.032	16.102	18	18.018	15.957	16
EPGF-1618-16	16	18	16	24	1	16.032	16.102	18	18.018	15.957	16
EPGF-1618-17	16	18	17	24	1	16.032	16.102	18	18.018	15.957	16
EPGF-1618-21	16	18	21	24	1	16.032	16.102	18	18.018	15.957	16
EPGF-1820-04	18	20	4	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-1820-06	18	20	6	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-1820-09	18	20	9	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-1820-12	18	20	12	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-1820-16	18	20	16	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-1820-17	18	20	17	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-1820-22	18	20	22	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-1820-30	18	20	30	26	1	18.032	18.102	20	20.021	17.957	18
EPGF-2023-07	20	23	7	30	1.5	20.04	20.124	23	23.021	19.948	20
EPGF-2023-11.5	20	23	11.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPGF-2023-16.5	20	23	16.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPGF-2023-21.5	20	23	21.5	30	1.5	20.04	20.124	23	23.021	19.948	20
EPGF-2528-11.5	25	28	11.5	35	1.5	25.04	25.124	28	28.021	24.948	25
EPGF-2528-16.5	25	28	16.5	35	1.5	25.04	25.124	28	28.021	24.948	25
EPGF-2528-21	25	28	21	35	1.5	25.04	25.124	28	28.021	24.948	25
EPGF-3034-16	30	34	16	42	2	30.04	30.124	34	34.025	29.948	30
EPGF-3034-20	30	34	20	42	2	30.04	30.124	34	34.025	29.948	30
EPGF-3034-26	30	34	26	42	2	30.04	30.124	34	34.025	29.948	30
EPGF-3034-37	30	34	37	42	2	30.04	30.124	34	34.025	29.948	30
EPGF-3236-16	32	36	16	40	2	32.05	32.15	36	36.025	31.938	32
EPGF-3236-26	32	36	26	40	2	32.05	32.15	36	36.025	31.938	32
EPGF-3539-07	35	39	7	47	2	35.05	35.15	39	39.025	34.938	35
EPGF-3539-12	35	39	12	47	2	35.05	35.15	39	39.025	34.938	35
EPGF-3539-16	35	39	16	47	2	35.05	35.15	39	39.025	34.938	35
EPGF-3539-26	35	39	26	47	2	35.05	35.15	39	39.025	34.938	35
EPGF-3539-36	35	39	36	47	2	35.05	35.15	39	39.025	34.938	35
EPGF-4044-07	40	44	7	52	2	40.05	40.15	44	44.025	39.938	40
EPGF-4044-14	40	44	14	52	2	40.05	40.15	44	44.025	39.938	40
EPGF-4044-20	40	44	20	52	2	40.05	40.15	44	44.025	39.938	40
EPGF-4044-30	40	44	30	52	2	40.05	40.15	44	44.025	39.938	40
EPGF-4044-40	40	44	40	52	2	40.05	40.15	44	44.025	39.938	40
EPGF-4044-50	40	44	50	52	2	40.05	40.15	44	44.025	39.938	40
EPGF-4550-12	45	50	12	58	2	45.05	45.15	50	50.025	44.938	45
EPGF-4550-15	45	50	15	58	2	45.05	45.15	50	50.025	44.938	45
EPGF-4550-25	45	50	25	58	2	45.05	45.15	50	50.025	44.938	45
EPGF-4550-30	45	50	30	58	2	45.05	45.15	50	50.025	44.938	45
EPGF-4550-40	45	50	40	58	2	45.05	45.15	50	50.025	44.938	45
EPGF-4550-50	45	50	50	58	2	45.05	45.15	50	50.025	44.938	45
EPGF-5055-07	50	55	7	63	2	50.05	50.15	55	55.03	49.938	50
EPGF-5055-10	50	55	10	63	2	50.05	50.15	55	55.03	49.938	50
EPGF-5055-25	50	55	25	63	2	50.05	50.15	55	55.03	49.938	50
EPGF-5055-40	50	55	40	63	2	50.05	50.15	55	55.03	49.938	50
EPGF-5055-50	50	55	50	63	2	50.05	50.15	55	55.03	49.938	50
EPGF-6065-07	60	65	7	73	2	60.06	60.18	65	65.03	59.926	60
EPGF-6065-22	60	65	22	73	2	60.06	60.18	65	65.03	59.926	60
EPGF-6065-30	60	65	30	73	2	60.06	60.18	65	65.03	59.926	60
EPGF-6065-50	60	65	50	73	2	60.06	60.18	65	65.03	59.926	60
EPGF-7075-50	70	75	50	83	2	70.06	70.18	75	75.03	69.926	70

材料性能	测试标准	单位	EPG
颜色	-	-	深灰
密度	ISO1183	g /cm³	1.46
最大吸湿率，50%RH	ISO62	%	0.7
最大吸水率	ISO62	%	4.0
对钢动摩擦系数	ITSO25	μ	0.08-0.18
极限P.V值	ITSO26	N/mm²x m/s	0.45
弯曲模量	ISO178	MPa	8500
弯曲强度	ISO178	MPa	210
最大静载荷	ITSO27	MPa	80
最大动载荷	ITSO28	MPa	43
邵氏硬度	ISO868	D	81
连续运行温度	ITS029	℃	+130
短时运行温度	ITS029	℃	+220
最低运行温度	ITSO29	℃	-40
导热性	ISO22007	W/(m·K)	0.24
线性热膨胀系数	ISO11359	K^-1× 10^-5	9
阻燃等级	UL94	Class	HB
体电阻率	IEC60093	Ω.cm	>10¹³
面电阻率	IEC60093	Ω	>10¹¹

材料性能

测试标准

单位

EPG

颜色

深灰

密度

ISO1183

g /cm³

1.46

最大吸湿率，50%RH

ISO62

0.7

最大吸水率

ISO62

4.0

对钢动摩擦系数

ITSO25

0.08-0.18

极限P.V值

ITSO26

N/mm²x m/s

0.45

弯曲模量

ISO178

MPa

8500

弯曲强度

ISO178

MPa

210

最大静载荷

ITSO27

MPa

最大动载荷

ITSO28

MPa

邵氏硬度

ISO868

连续运行温度

ITS029

℃

+130

短时运行温度

ITS029

℃

+220

最低运行温度

ITSO29

℃

-40

导热性

ISO22007

W/(m·K)

0.24

线性热膨胀系数

ISO11359

K^-1× 10^-5

阻燃等级

UL94

Class

体电阻率

IEC60093

Ω.cm

>10¹³

面电阻率

IEC60093

>10¹¹

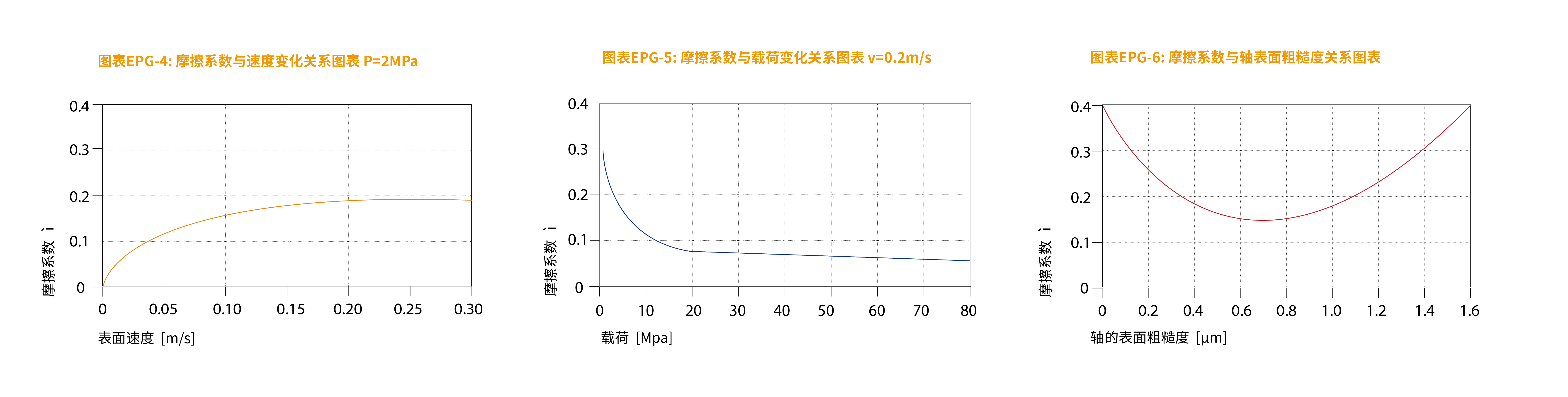

EPG	干运行	油脂	油	水
摩擦系数 μ	0.25-0.40	0.09	0.04	0.04

EPG

干运行

油脂

油

水

摩擦系数 μ

0.25-0.40

0.09

0.04

直径 [mm]	EPG E10 [mm]	座孔 H7 [mm]	轴 h9 [mm]
> 0~3	+0.014~+0.054	0~+0.010	0~-0.025
> 3~6	+0.020~+0.068	0~+0.012	0~-0.030
> 6~10	+0.025~+0.083	0~+0.015	0~-0.036
> 10~18	+0.032~+0.102	0~+0.018	0~-0.043
> 18~30	+0.040~+0.124	0~+0.021	0~-0.052
> 30~50	+0.050~+0.150	0~+0.025	0~-0.062
> 50~80	+0.060~+0.180	0~+0.030	0~-0.074
> 80~120	+0.072~+0.212	0~+0.035	0~-0.087
> 120~180	+0.085~+0.245	0~+0.040	0~-0.100
