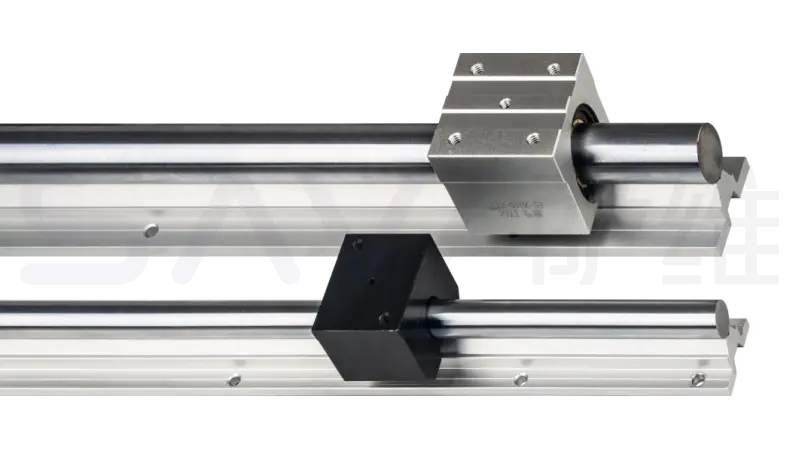

产品尺寸【mm】
| 钢轴 | 铝轴 | 不锈钢轴 | 轴直径 Φ | B | h | T | E | H | F | X | Y | C | S1 Φ | S2 d1xd2xl | N | P | 最大长度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCR-10-L | LAR-10-L | LER-10-L | 10 | 32 | 18 | 4 | 16 | 13 | 12.5 | 4.7 | 8.5 | 22 | 4.5 | 5×9x5 | 20 | 150 | 3000 |
| LCR-12-L | LAR-12-L | LER-12-L | 12 | 32 | 19 | 4 | 16 | 13 | 12.5 | 4.7 | 8.5 | 22 | 4.5 | 5×9×5 | 20 | 150 | 3000 |
| LCR-16-L | LAR-16-L | LER-16-L | 16 | 40 | 25 | 5 | 20 | 17.8 | 18.5 | 8 | 11.7 | 30 | 5.5 | 5.5×9.5×5.4 | 20 | 150 | 3000 |
| LCR-20-L | LAR-20-L | LER-20-L | 20 | 45 | 27 | 5 | 22.5 | 17.7 | 19 | 8 | 10 | 30 | 5.5 | 5.5×9.5×5.4 | 20 | 150 | 3000 |
| LCR-25-L | LAR-25-L | LER-25-L | 25 | 55 | 33 | 6 | 27.5 | 21 | 21.5 | 8 | 12 | 35 | 6.6 | 6.6x11x6.5 | 25 | 200 | 3000 |
| LCR-30-L | LAR-30-L | LER-30-L | 30 | 60 | 37 | 7 | 30 | 22.8 | 26.5 | 8 | 13 | 40 | 6.6 | 6.6x11x6.5 | 25 | 200 | 3000 |
