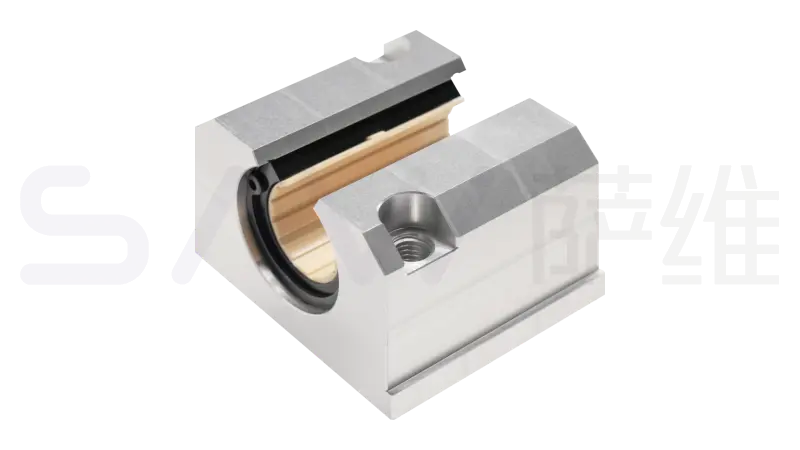

产品尺寸[mm] 技术参数 座孔：H7 轴：h6-h9
| 产品代码 可装标准型 LIN-01Rk | 自调心 可装调心型 LIN-03Rk | d | D H6 | H | H1 +0.01 -0.02 | H2 | H3 | H4 | S1 | B | L ±0.3 | M ±0.02 | E1 ±0.15 | E2 ±015 | d1 | d2 | W +0.6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LIN-01RAK-12 | LIN-03RAK-12 | 12 | 22 | 28 | 18 | 11 | 8 | 25 | M5 | 43 | 39 | 21.5 | 32 | 23 | 4.2 | 8 | 14 |
| LIN-01RAK-16 | LIN-03RAK-16 | 16 | 26 | 35 | 22 | 13 | 12 | 30 | M6 | 53 | 43 | 26.5 | 40 | 26 | 5.2 | 10 | 17 |
| LIN-01RAK-20 | LIN-03RAK-20 | 20 | 32 | 42 | 25 | 18 | 13 | 34 | M8 | 60 | 54 | 30.0 | 45 | 32 | 6.8 | 11 | 17 |
| LIN-01RAK-25 | LIN-03RAK-25 | 25 | 40 | 51 | 60 | 22 | 15 | 40 | M10 | 78 | 67 | 39.0 | 60 | 40 | 8.6 | 15 | 21 |
| LIN-01RAK-30 | LIN-03RAK-30 | 30 | 47 | 60 | 35 | 22 | 16 | 48 | M10 | 87 | 79 | 43.5 | 68 | 45 | 8.6 | 15 | 21 |
| LIN-01RAK-40 | LIN-03RAK-40 | 40 | 62 | 77 | 45 | 26 | 20 | 60 | M12 | 108 | 91 | 54.0 | 86 | 58 | 10.3 | 18 | 27 |
