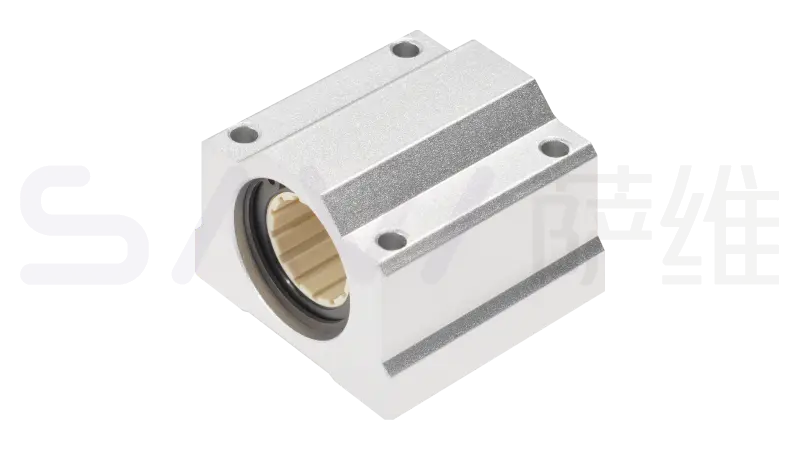

产品尺寸[mm] 技术参数 座孔：H7 轴：h6-h9
| 产品代码 可选装标准型 LIN-01R | 自调心 可选装调心型 LIN-03R | 全塑料 可选装全塑料 LIN-00 | 轴径 [mm] | h | D | W | H | G | A | J | E | S1×L1 | S2 | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LIN-01G-12 | LIN-03G-12 | LIN-00G-12 | Φ 12 | 15 | 22 | 44 | 30 | 24 | 8 | 33 | 5.5 | M5×10 | Φ 4.3 | 26 | 39 |
| LIN-01G-16 | LIN-03G-16 | LIN-00G-16 | Φ 16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5×12 | Φ 4.3 | 34 | 44 |
| LIN-01G-20 | LIN-03G-20 | LIN-00G-20 | Φ 20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | Φ 5.2 | 40 | 53 |
| LIN-01G-25 | LIN-03G-25 | LIN-00G-25 | Φ 25 | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8×18 | Φ 7.0 | 50 | 67 |
| LIN-01G-30 | LIN-03G-30 | LIN-00G-30 | Φ 30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8×18 | Φ 7.0 | 58 | 76 |
| LIN-01G-40 | LIN-03G-40 | LIN-00G-40 | Φ 40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | Φ 8.7 | 60 | 90 |
| LIN-01G-50 | LIN-03G-50 | LIN-00G-50 | Φ 50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | Φ 8.7 | 80 | 110 |
| 产品代码 标准型 | 内径 [mm] | 公差 [mm] | 极限动载荷 P=5MPa [N] | 极限静载荷 P=35Mpa [N] | 重量 [g] |
|---|---|---|---|---|---|
| LIN-01G-12 | 12 | +0.030/+0.088 | 1152 N | 8064 N | 79 |
| LIN-01G-16 | 16 | +0.030/+0.088 | 1728 N | 12096 N | 125 |
| LIN-01G-20 | 20 | +0.030/+0.091 | 2700 N | 18900 N | 159 |
| LIN-01G-25 | 25 | +0.030/+0.091 | 4350 N | 30650 N | 343 |
| LIN-01G-30 | 30 | +0.040/+0.110 | 6120 N | 42840 N | 450 |
| LIN-01G-40 | 40 | +0.040/+0.115 | 9600 N | 67200 N | 1021 |
| LIN-01G-50 | 50 | +0.040/+0.130 | 15000 N | 105000 N | 1871 |
