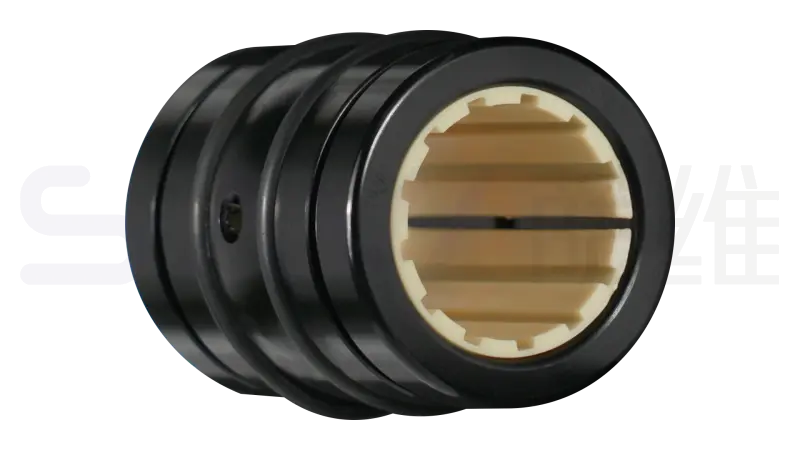

产品尺寸[mm]
| 产品代码 | d1 | d2 h8 | B h10 | B1 H10 | s H10 | dn h10 | ds h10 | do | o +0.1 | e | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LIN-03R-10 | 10 | 18.8 | 28.9 | 21.8 | 1.3 | 17.5 | 18.5 | 15.4 | 1.86 | 5 | 13 |
| LIN-03R-12 | 12 | 21.8 | 31.9 | 22.8 | 1.3 | 20.5 | 21.5 | 18.4 | 1.86 | 6 | 18 |
| LIN-03R-16 | 16 | 25.8 | 35.9 | 24.9 | 1.3 | 24.2 | 25.5 | 20.4 | 2.86 | 8 | 32 |
| LIN-03R-20 | 20 | 31.8 | 44.8 | 31.5 | 1.6 | 29.6 | 31.5 | 26.4 | 2.86 | 10 | 50 |
| LIN-03R-25 | 25 | 39.8 | 57.8 | 44.1 | 1.85 | 36.5 | 39 | 34.4 | 2.86 | 12.5 | 39 |
| LIN-03R-30 | 30 | 46.7 | 67.8 | 52.1 | 1.85 | 43.5 | 46.0 | 41.4 | 2.86 | 15 | 57 |
| LIN-03R-40 | 40 | 61.7 | 79.8 | 60.9 | 2.15 | 57.8 | 61.0 | 56.4 | 2.86 | 20 | 100 |
| LIN-03R-50 | 50 | 74.7 | 99.8 | 78 | 2.65 | 70.5 | 74.0 | 69.4 | 2.86 | 25 | 157 |
产品尺寸[mm]
| 产品代码 | 轴 ∅ [mm] | 基座孔 ∅ H7 [mm] | 公差 轴承内圈直径 [mm] | F最大值 动态 P=5MPa [N] | F最大值 静态 P=35MPa [N] | 重量 [ g ] |
|---|---|---|---|---|---|---|
| LIN-03R-10 | 10 | 19 | +0.030 +0.088 | 725 | 5.075 | 11 |
| LIN-03R-12 | 12 | 22 | +0.030 +0.088 | 960 | 6,720 | 17 |
| LIN-03R-16 | 16 | 26 | +0.030 +0.088 | 1,440 | 10,080 | 23 |
| LIN-03R-20 | 20 | 32 | +0.030 +0.091 | 2,250 | 15,750 | 44 |
| LIN-03R-25 | 25 | 40 | +0.030 +0.091 | 3,625 | 25,375 | 92 |
| LIN-03R-30 | 30 | 47 | +0.040 +0.110 | 5,100 | 35,700 | 145 |
| LIN-03R-40 | 40 | 62 | +0.040 +0.115 | 8,000 | 56,000 | 311 |
| LIN-03R-50 | 50 | 75 | +0.050 +0.130 | 12,500 | 87,500 | 542 |
