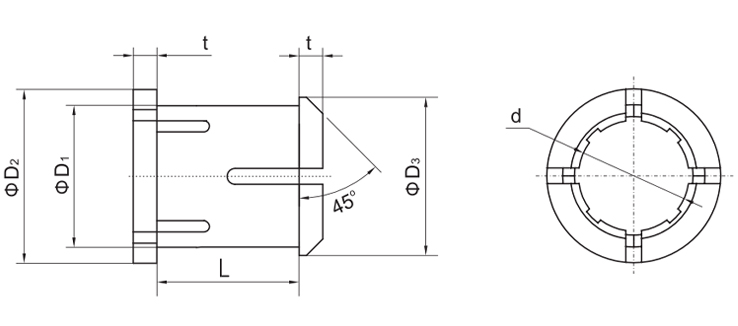

| 型式 | 直套型 全长L [mm] | d (压入后的公差) |
D1 [mm] |
D2 [mm] |
D3 [mm] |
t [mm] |
||
| Type | No. | |||||||
| ELB | 0610 | 10/15 | 6 | +0.020 +0.068 | 10 | 12 | 11 | 1.5 |
| 0812 | 10/15 | 8 | 12 | 14 | 13 | |||
| 1014 | 10/15 | 10 | +0.032 +0.102 | 14 | 18 | 16 | 2 | |
| 1216 | 15/20 | 12 | 16 | 20 | 18 | |||
| 1418 | 15/18/20 | 14 | 18 | 22 | 20 | |||
| 1519 | 20/25 | 15 | 19 | 23 | 21 | |||
| 1620 | 20/25 | 16 | 20 | 24 | 22 | 3 | ||
| 1822 | 20/25 | 18 | 22 | 26 | 24 | |||
| 2024 | 25 | 20 | +0.040 +0.124 | 24 | 28 | 26 | ||
| 2025 | 20/30 | 20 | 25 | 29 | 27 | |||
| 2529 | 30 | 25 | 29 | 33 | 31 | |||
| 2530 | 30/40 | 25 | 30 | 34 | 32 | |||
| 3034 | 30 | 30 | 34 | 38 | 36 | |||
| 3035 | 30/40 | 30 | 35 | 39 | 37 | |||
