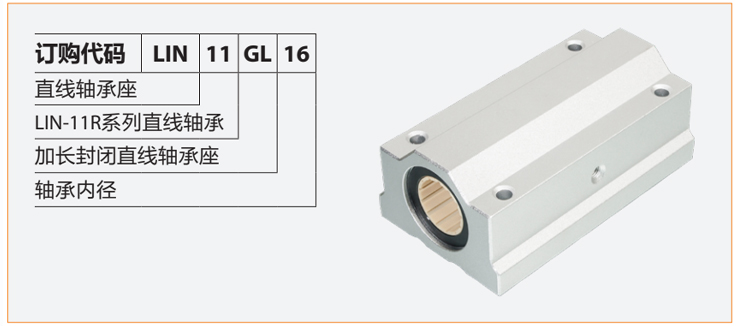

| 产品代码 可选装标准型 2xLIN-11R | 轴径 [mm] |
尺寸 [mm] |
|||||||||||

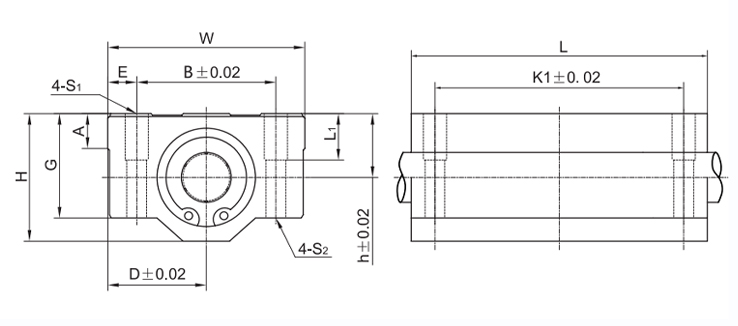

| h | D | W | H | G | A | J | E | S1×L1 | S2 | K1 | L | ||
| LIN-11GL-10 | ф10 | 13 | 20 | 40 | 26 | 21 | 8 | 28 | 6 | M5×12 | ф4.3 | 46 | 68 |
| LIN-11GL-12 | ф12 | 15 | 21 | 44 | 28 | 24 | 8 | 30.5 | 5.75 | M5×12 | ф4.3 | 50 | 70 |
| LIN-11GL-16 | ф16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5×12 | ф4.3 | 60 | 85 |
| LIN-11GL-20 | ф20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | ф5.2 | 70 | 96 |
| LIN-11GL-25 | ф25 | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8×18 | ф7 | 100 | 130 |
| LIN-11GL-30 | ф30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8×18 | ф7 | 110 | 140 |
| LIN-11GL-40 | ф40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | ф8.7 | 140 | 175 |
| LIN-11GL-50 | ф50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M12×25 | ф8.7 | 160 | 215 |
| 产品代码 标准型 | 内径 [mm] | I.D公差 [mm] | 极限动载荷 P=5MPa[N] | 极限静载荷 P=35Mpa[N] | 重量 [g] |
| LIN-11GL-10 | 10 | +0.030/+0.080 | 2600N | 18200N | 175 |
| LIN-11GL-12 | 12 | +0.030/+0.080 | 3360N | 23520N | 205 |
| LIN-11GL-16 | 16 | +0.030/+0.088 | 3456N | 24192N | 250 |
| LIN-11GL-20 | 20 | +0.030/+0.091 | 5400N | 37800N | 318 |
| LIN-11GL-25 | 25 | +0.030/+0.091 | 8400N | 61300N | 686 |
| LIN-11GL-30 | 30 | +0.040/+0.110 | 12240N | 85680N | 905 |
| LIN-11GL-40 | 40 | +0.040/+0.115 | 19200N | 134400N | 2041 |
| LIN-11GL-50 | 50 | +0.040/+0.130 | 30000N | 210000N | 5215 |
