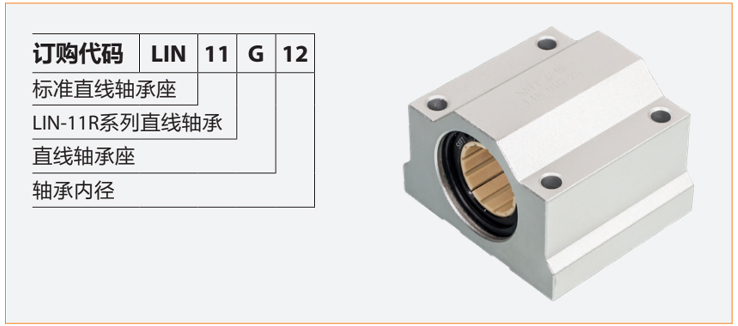

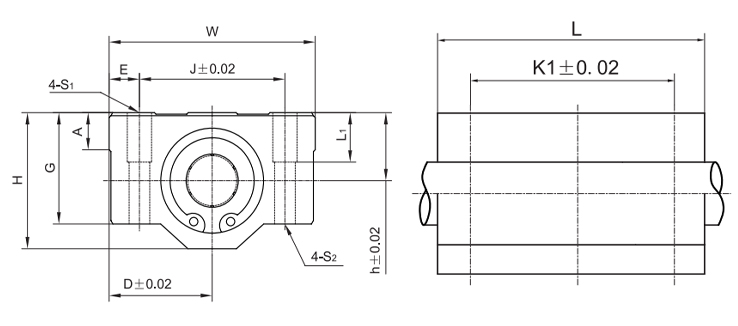

| 产品代码 可选装标准型 LIN-11R | 轴径 [mm] | 尺寸 [mm] | |||||||||||
| h | D | W | H | G | A | J | E | S1×L1 | S2 | K | L | ||
| LIN-11G-12 | ф12 | 15 | 21 | 42 | 28 | 24 | 8 | 30.5 | 5.75 | M5×12 | ф4.3 | 26 | 36 |
| LIN-11G-16 | ф16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5×12 | ф4.3 | 34 | 44 |
| LIN-11G-20 | ф20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | ф5.2 | 40 | 50 |
| LIN-11G-25 | ф25 | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8×18 | ф7 | 50 | 67 |
| LIN-11G-30 | ф30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8×18 | ф7 | 58 | 72 |
| LIN-11G-40 | ф40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | ф8.7 | 60 | 90 |
| LIN-11G-50 | ф50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | ф8.7 | 80 | 110 |
| 产品代码 标准型 | 内径 [mm] | 公差 [mm] | 极限动载荷 P=5MPa[N] | 极限静载荷 P=35Mpa[N] | 重量 [g] |
| LIN-11G-12 | 12 | +0.030/+0.088 | 1152N | 8064N | 79 |
| LIN-11G-16 | 16 | +0.030/+0.088 | 1728N | 12096N | 125 |
| LIN-11G-20 | 20 | +0.030/+0.091 | 2700N | 18900N | 159 |
| LIN-11G-25 | 25 | +0.030/+0.091 | 4350N | 30650N | 343 |
| LIN-11G-30 | 30 | +0.040/+0.110 | 6120N | 42840N | 450 |
| LIN-11G-40 | 40 | +0.040/+0.115 | 9600N | 67200N | 1021 |
| LIN-11G-50 | 50 | +0.040/+0.130 | 15000N | 105000N | 1871 |
