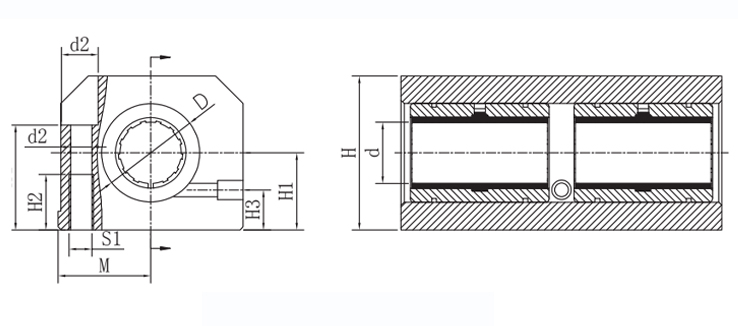

| 产品代码 可选装标准型 LIN-01R | 自调心 可选装调心型 LIN-03R | 全塑料 可选装全塑料 LIN-00 | d | D H6 | H | H1 +0.01 -0.02 | H2 | H3 | H4 | S1 | B | L ±0.3 | M ±0.02 | E1 ±0.15 | E2 ±0.15 | d1 | d2 |
| LIN-01RAL-08 | – | LIN-00RAL-08 | 8 | 16 | 28 | 13 | 13 | 8 | 23 | M5 | 35 | 62 | 17.5 | 35 | 25 | 4.2 | 8 |
| LIN-01RAL-12 | LIN-03RAL-12 | LIN-00RAL-12 | 12 | 22 | 35 | 18 | 13 | 10 | 25 | M6 | 43 | 76 | 21.5 | 40 | 30 | 5.2 | 10 |
| LIN-01RAL-16 | LIN-03RAL-16 | LIN-00RAL-16 | 16 | 26 | 42 | 22 | 13 | 12 | 30 | M6 | 53 | 84 | 26.5 | 45 | 36 | 5.2 | 10 |
| LIN-01RAL-20 | LIN-03RAL-20 | LIN-00RAL-20 | 20 | 32 | 50 | 25 | 18 | 13 | 34 | M8 | 60 | 104 | 30 | 55 | 45 | 6.8 | 11 |
| LIN-01RAL-25 | LIN-03RAL-25 | LIN-00RAL-25 | 25 | 40 | 60 | 30 | 22 | 15 | 40 | M10 | 78 | 130 | 39 | 70 | 54 | 8.6 | 15 |
| LIN-01RAL-30 | LIN-03RAL-30 | LIN-00RAL-30 | 30 | 47 | 70 | 35 | 26 | 16 | 48 | M12 | 87 | 152 | 43.5 | 85 | 62 | 10.3 | 18 |
| LIN-01RAL-40 | LIN-03RAL-40 | LIN-00RAL-40 | 40 | 62 | 90 | 45 | 34 | 20 | 60 | M16 | 108 | 176 | 54 | 100 | 80 | 14.25 | 20 |
