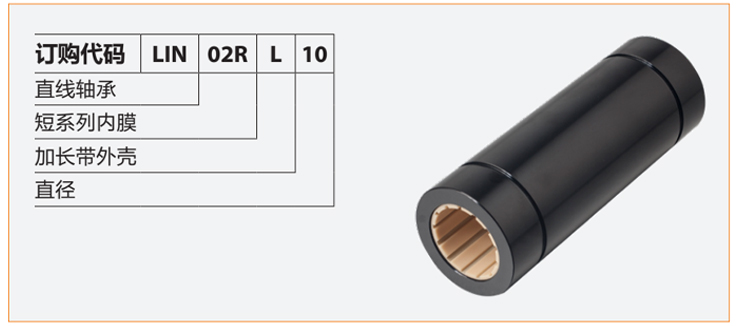

| 产品代码 | 轴 ∅ [mm] |
公差
轴承内圈
直径 [mm] |
F最大值[N]
动态 P=5MPa |
F最大值[N]
静态 P=35MPa |
重量 [g] |
| LIN-02RL-10 | 10 | +0.030 +0.088 | 1560 | 10,920 | 26 |
| LIN-02RL-12 | 12 | +0.030 +0.088 | 2016 | 14,112 | 33 |
| LIN-02RL-16 | 16 | +0.030 +0.088 | 2880 | 20,160 | 50 |
| LIN-02RL-20 | 20 | +0.030 +0.091 | 3600 | 25,200 | 80 |
| LIN-02RL-25 | 25 | +0.030 +0.091 | 6,000 | 42,000 | 189 |
| LIN-02RL-30 | 30 | +0.040 +0.110 | 9,000 | 63,000 | 269 |

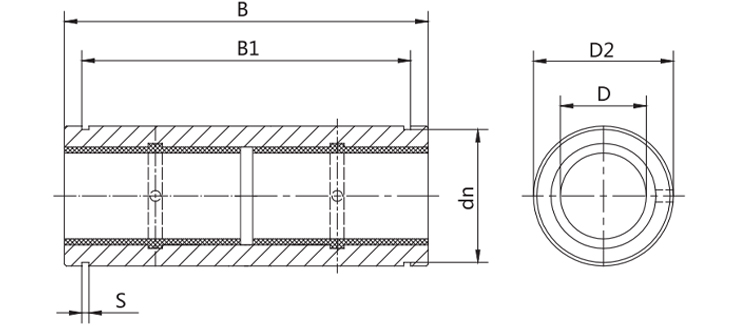

| 产品代码 | d1 | d2 h7 |
B h10 |
B1 H10 |
s H10 |
dn h10 |
| LIN-02RL-10 | 10 | 19 | 55 | 44 | 1.3 | 18 |
| LIN-02RL-12 | 12 | 22 | 57 | 46 | 1.3 | 20 |
| LIN-02RL-16 | 16 | 28 | 70 | 53 | 1.6 | 27 |
| LIN-02RL-20 | 20 | 32 | 80 | 61 | 1.6 | 30.5 |
| LIN-02RL-25 | 25 | 40 | 112 | 82 | 1.85 | 38 |
| LIN-02RL-30 | 30 | 45 | 123 | 89 | 1.85 | 43 |
