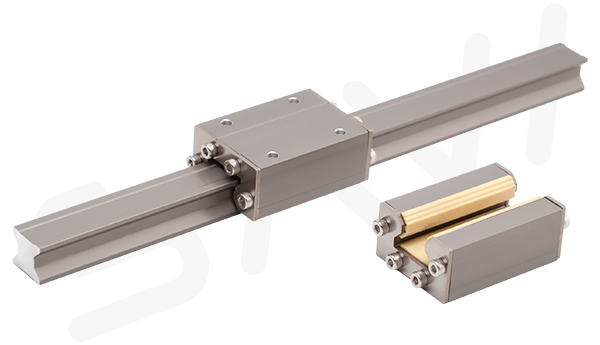

| model | Component size [mm] |
Slider size [mm] |

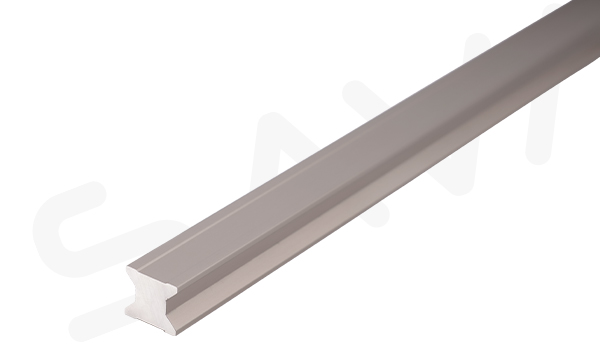

||||||||||
| H | H1 | N | W | B | B1 | L | L1 | C | H2 | Mxl | H2 | |
| HGH 15CA | 28 | 4.2 | 9.5 | 34 | 26 | 4 | 59 | 55 | 26 | 2 | M4X5 | 2 |
| HGH 20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 62 | 58 | 36 | 2 | M5X6 | 2 |
| HGH 25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 64 | 60 | 35 | 2 | M6X8 | 2 |
| HGH 30CA | 45 | 6 | 16 | 60 | 35 | 12.5 | 79 | 75 | 40 | 2 | M8X10 | 2 |
| Slide size [mm] |
Slide rail fixing bolt size [mm] | Basic dynamic rated load C[kN] | Basic static load rating CD[kN] | Allowed static moment | weight | |||||||||
| WR | HR | ΦD | h | Φd | E | P | MR kN-m | MP kN-m | MY kN-m | Slider kg | Slide kg/m | |||
| 15 | 16 | 7.5 | 5.3 | 4.5 | 20 | 60 | M4x16 | 11.38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.12 | 0.46 |
| 20 | 19 | 9.5 | 8.5 | 6 | 20 | 60 | M5x16 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.2 | 0.7 |
| 23 | 23 | 11 | 9 | 7 | 20 | 60 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0.34 | 1.02 |
| 28 | 28 | 14 | 12 | 9 | 20 | 80 | M8x25 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 0.58 | 1.4 |
