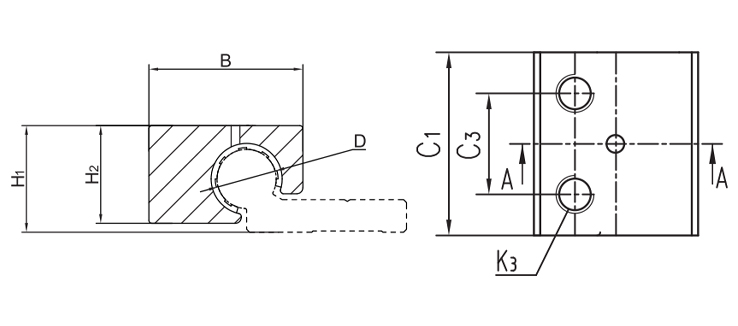

| 产品代码 | D [mm] | 公差s [mm] | B [mm] | C1 [mm] | C3 [mm] | H1 [mm] | H2 [mm] | K3 [mm] | 重量 [g] | 静态载荷 | ||
| Coy-[N] | Coz+[N] | Coz-[N] | ||||||||||

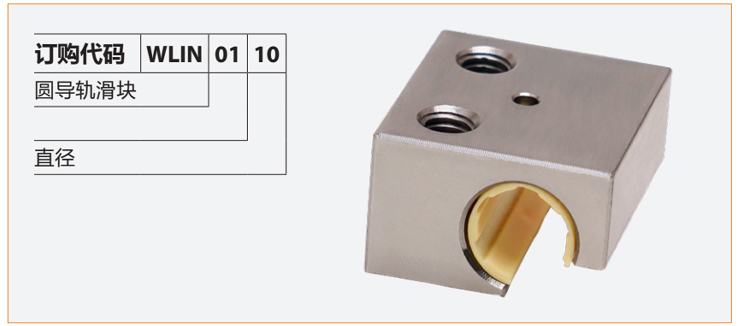

| WLIN-01-10 | 10 | +0.083/+0.020 | 26 | 29 | 16 | 18 | 16.5 | M6 | 20 | 1200 | 1200 | 250 |
| WLIN-01-16 | 16 | +0.102/+0.032 | 34.5 | 36 | 18 | 27 | 25.5 | M8 | 48 | 2100 | 2100 | 400 |
| WLIN-01-20 | 20 | +0.124/+0.040 | 42.5 | 45 | 27 | 36 | 34.5 | M8 | 99 | 3200 | 3200 | 500 |
