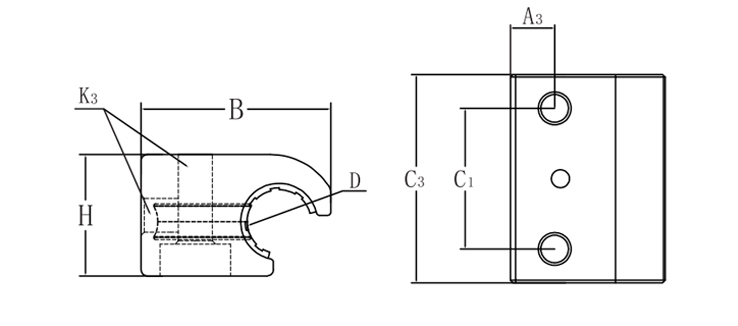

| 产品代码 | D [mm] |
公差s [mm] | H [mm] |
B [mm] |
C3 [mm] |
C1 [mm] |
K3 [mm] |
A3 [mm] |
重量 [g] |
| WLIN-01-10GL | 10 | +0.083/+0.020 | 19 | 29.7 | 40 | 27 | M6 | 8.5 | 35 |
| WLIN-01-16GL | 16 | +0.102/+0.032 | 25 | 39.5 | 50 | 34 | M8 | 11 | 66 |
| WLIN-01-20GL | 20 | +0.124/+0.040 | 33.5 | 48.5 | 58 | 40 | M8 | 11 | 130 |
