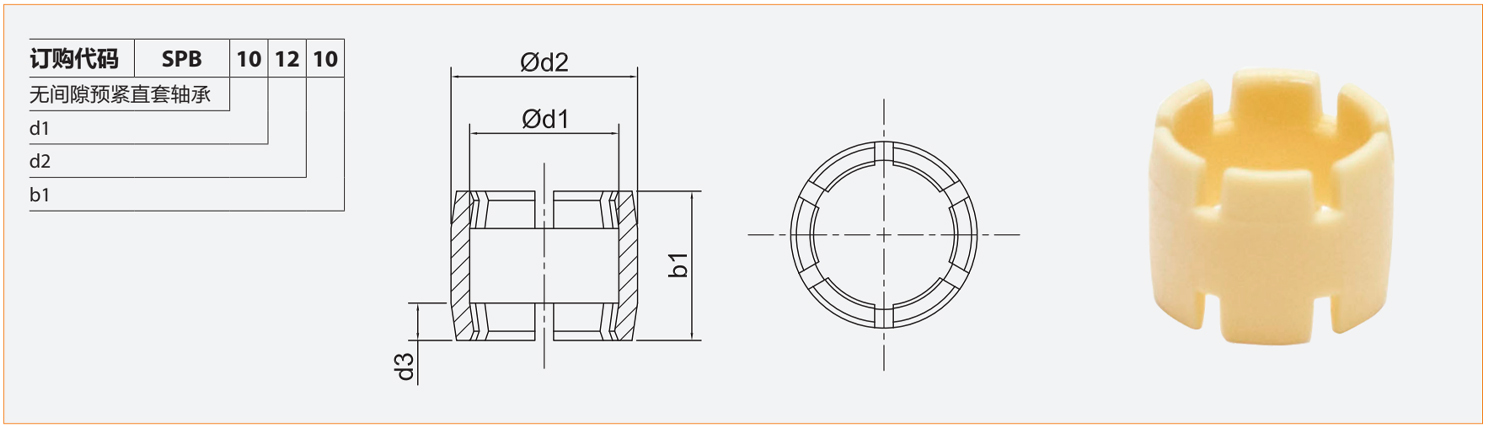

| 产品代码 | d1 [mm] |
d1压入后的公差 [mm] |
d2 [mm] |
b1[h13] [mm] |
d3 [mm] |
| SPB-0608-06 | 6 | +0.020/ +0.068 | 8 | 6 | 2 |
| SPB-0810-08 | 8 | +0.025/ +0.083 | 10 | 8 | 2 |
*d公差为压入标准H7座孔(ISO3547-1)后公差

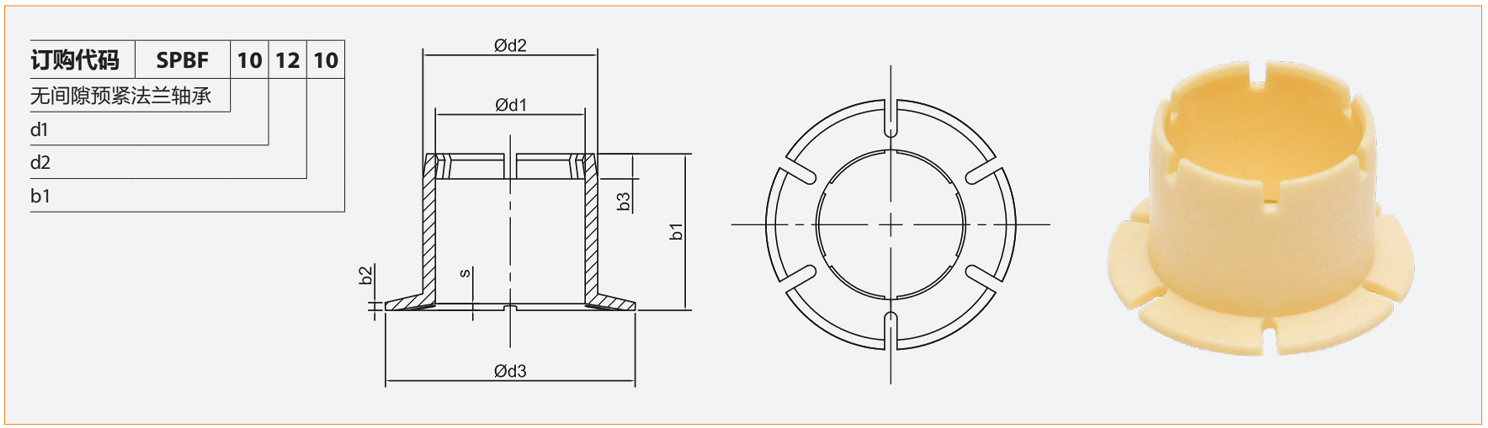

| 产品代码 | d1 [mm] |
d1压入后的公差 [mm] |
d2 [mm] |
d3 [mm] |
b1[h13] [mm] |
b2[h13] [mm] |
b3 [mm] |
s[±0.1] [mm] |
| SPBF-1012-10 | 10 | +0.025/ +0.083 | 12 | 18 | 10 | 1 | 2 | 0.53 |
| SPBF-1214-12 | 12 | +0.032/ +0.102 | 14 | 20 | 12 | 1 | 2 | 0.53 |
| SPBF-1416-14 | 14 | +0.032/ +0.102 | 16 | 22 | 12 | 1 | 2 | 0.53 |
*d公差为压入标准H7座孔(ISO3547-1)后公差
