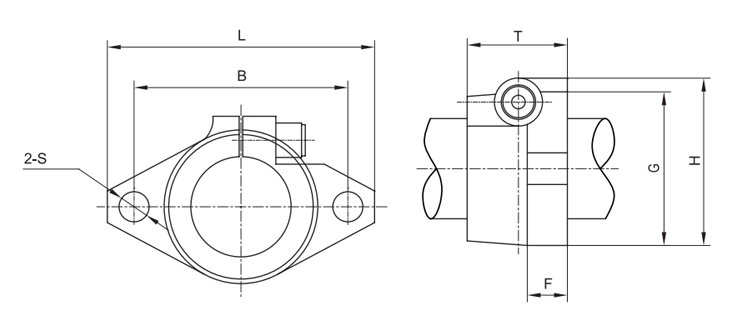

| 订购编码 | 轴径 mm | 尺寸 （mm） | 安装 螺栓 | 安全 螺栓 | 重量 [g] | ||||||
| L | T | F | B | G | H | S | |||||
| SHF-12 | 12 | 47 | 13 | 7 | 36 | 25 | 28 | 5.5 | M5 | M4 | 20 |
| SHF-16 | 16 | 50 | 16 | 8 | 40 | 28 | 31 | 5.5 | M5 | M4 | 27 |
| SHF-20 | 20 | 60 | 20 | 8 | 48 | 34 | 37 | 7 | M6 | M5 | 40 |
| SHF-25 | 25 | 70 | 25 | 10 | 56 | 40 | 42 | 7 | M6 | M5 | 60 |
| SHF-30 | 30 | 80 | 30 | 12 | 64 | 46 | 50 | 9 | M8 | M6 | 110 |
| SHF-40 | 40 | 102 | 40 | 16 | 80 | 56 | 67 | 12 | M10 | M10 | 510 |
| SHF-50 | 50 | 122 | 50 | 19 | 96 | 70 | 83 | 14 | M12 | M12 | 890 |
