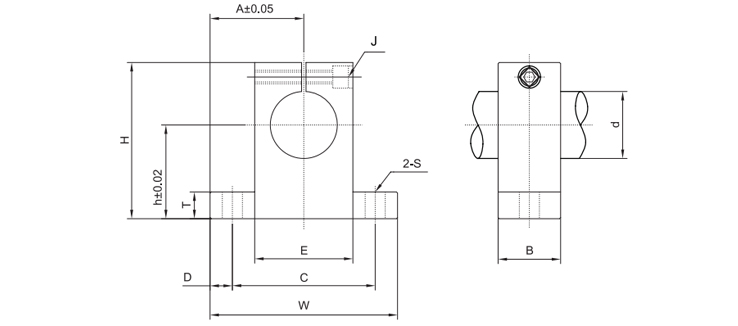

| 订购编码 | 轴径 mm2 | 尺寸 （mm） | 重量 [g] | ||||||||||
| h | A | W | H | T | E | D | C | B | S | J | |||
| SH-10 | 10 | 20 | 21 | 42 | 32.8 | 6 | 18 | 5 | 32 | 14 | Φ5.5 | M4 | 24 |
| SH-12 | 12 | 23 | 21 | 42 | 37.5 | 6 | 20 | 5 | 32 | 14 | Φ5.5 | M4 | 30 |
| SH-16 | 16 | 27 | 24 | 48 | 44 | 8 | 25 | 5 | 38 | 16 | Φ5.5 | M4 | 40 |
| SH-20 | 20 | 31 | 30 | 60 | 51 | 10 | 30 | 7.5 | 45 | 20 | Φ6.6 | M5 | 70 |
| SH-25 | 25 | 35 | 35 | 70 | 60 | 12 | 38 | 7 | 56 | 24 | Φ6.6 | M6 | 130 |
| SH-30 | 30 | 42 | 42 | 84 | 70 | 12 | 44 | 10 | 64 | 28 | Φ9 | M6 | 180 |
| SH-40 | 40 | 60 | 57 | 114 | 96 | 15 | 60 | 12 | 90 | 36 | Φ11 | M8 | 420 |
| SH-50 | 50 | 70 | 63 | 126 | 120 | 18 | 74 | 13 | 100 | 40 | Φ14 | M12 | 750 |
