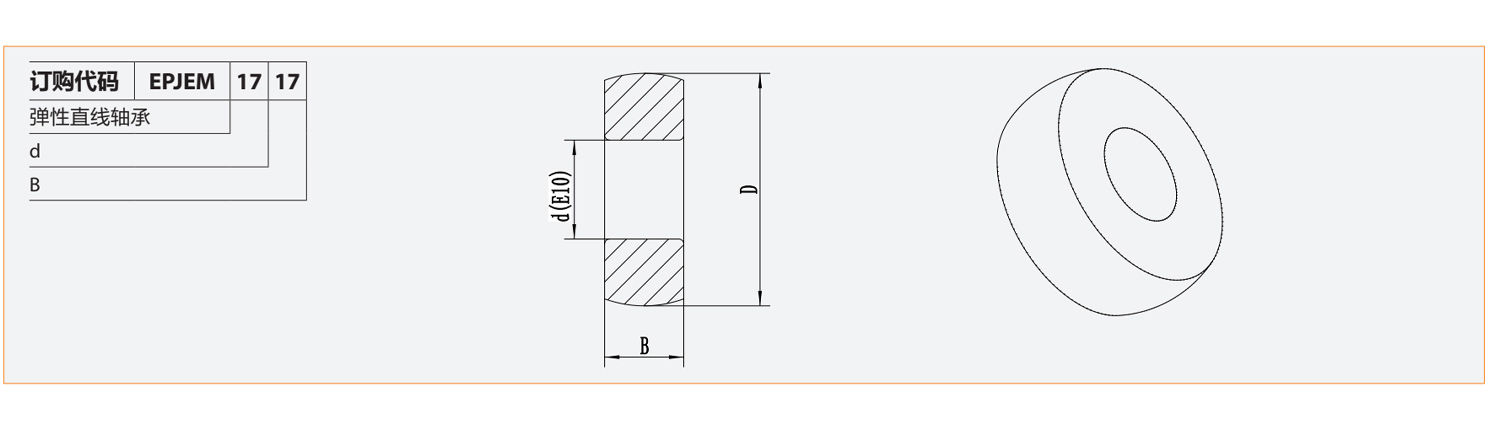

| 产品编码 | 外壳代码 | d E10 [mm] | D [mm] | B [mm] | 最大静态抗压强度 | |
| 径向 [kN] | 轴向 [kN] | |||||
| EPJEM-17-17 | UC203 | 17 | 47 | 17 | 10 | 7.5 |
| EPJEM-20-17 | UC204 | 20 | 47 | 17 | 11.5 | 7.5 |
| EPJEM-25-17 | UC205 | 25 | 52 | 17 | 14.5 | 7.5 |
| EPJEM-30-19 | UC206 | 30 | 62 | 19 | 19.5 | 9.5 |
| EPJEM-35-20 | UC207 | 35 | 72 | 20 | 24 | 10.5 |
| EPJEM-40-21 | UC208 | 40 | 80 | 21 | 29 | 12 |
| EPJEM-45-22 | UC209 | 45 | 85 | 22 | 34 | 13 |
| EPJEM-50-24 | UC210 | 50 | 90 | 24 | 41.5 | 15.5 |
