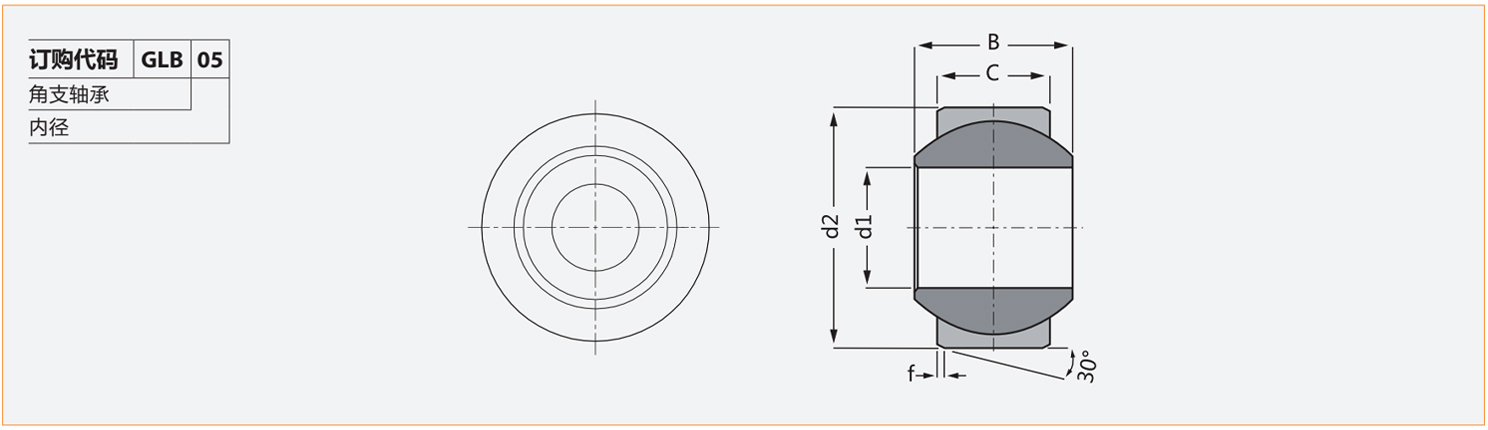

| 产品代码 | 最大静态抗压强度 | d1 E10 |
d2 [mm] |
B [mm] |
C [mm] |
f [mm] |
最大调节角度 | 重量 [g] |
|
| 径向 [N] |
轴向* [N] |
||||||||
| GLB-04 | 600 | 50 | 4 | 12 | 5 | 3 | 0.3 | 37 | 0.4 |
| GLB-05 | 1000 | 130 | 5 | 14 | 6 | 4 | 0.3 | 33 | 0.8 |
| GLB-06 | 1200 | 150 | 6 | 14 | 6 | 4 | 0.3 | 27 | 0.9 |
| GLB-08 | 1800 | 175 | 8 | 16 | 8 | 5 | 0.3 | 24 | 1.2 |
| GLB-10 | 2500 | 400 | 10 | 19 | 9 | 6 | 0.5 | 24 | 1.9 |
| GLB-12 | 3800 | 650 | 12 | 22 | 10 | 7 | 0.5 | 21 | 2.8 |
| GLB-15 | 5500 | 1000 | 15 | 26 | 12 | 9 | 0.5 | 21 | 6.9 |
| GLB-16 | 6000 | 1150 | 16 | 28 | 13 | 9.5 | 0.5 | 21 | 9 |
| GLB-20 | 9000 | 1400 | 20 | 35 | 16 | 12 | 0.8 | 18 | 16.3 |
| GLB-25 | 14000 | 2900 | 25 | 42 | 20 | 16 | 0.8 | 16 | 29 |
| GLB-30 | 17000 | 4000 | 30 | 47 | 22 | 18 | 0.8 | 13 | 37.4 |
