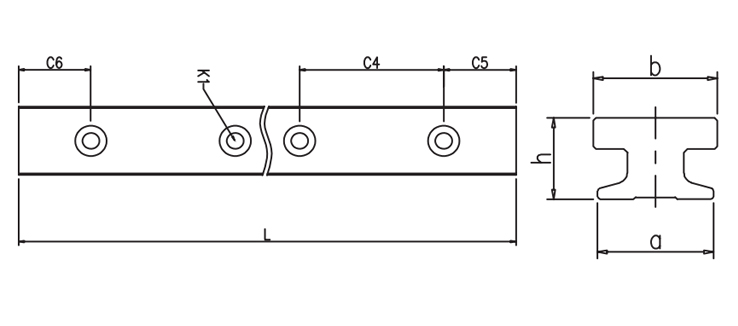

| 产品代码 | 重量 [kg/m] |
L max. [mm] |
a -0.2 |
C4 | C5 min. |
C5 max. |
C6 min. |
C6 max. |
h | K1 用于 螺栓 DIN 912 |
b |
| NW05-07-L | 0.08 | 2000 | 7 | / | / | / | / | / | 5.5 | M3 | 8 |
| NW05-09-L | 0.11 | 2000 | 9 | / | / | / | / | / | 6.3 | M3 | 9.6 |
| NW05-12-L | 0.2 | 2000 | 12 | / | / | / | / | / | 8.6 | M3 | 13 |
| NW05-15-L | 0.33 | 3000 | 15 | / | / | / | / | / | 10.8 | M3 | 17 |
| NWH05-07-L | 0.08 | 2000 | 7 | 15 | 5 | 12 | 5 | 12 | 5.5 | M3 | 8 |
| NWH05-09-L | 0.11 | 2000 | 9 | 20 | 5 | 14.5 | 5 | 14.5 | 6.3 | M3 | 9.6 |
| NWH05-12-L | 0.2 | 2000 | 12 | 25 | 5 | 17 | 5 | 17 | 8.6 | M3 | 13 |
| NWH05-15-L | 0.33 | 3000 | 15 | 40 | 10 | 29.5 | 10 | 29.5 | 10.8 | M3 | 17 |
