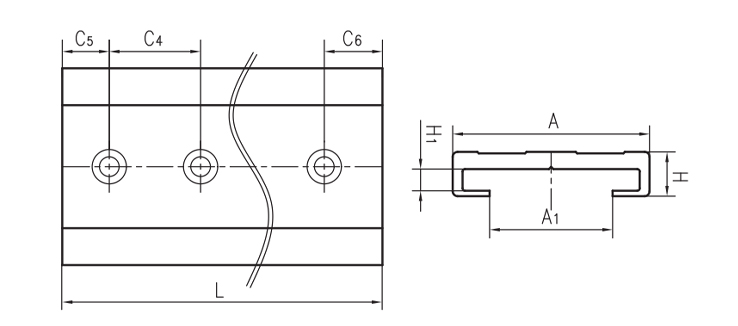

| 产品代码 | A [mm] |
A1 [mm] |
C4 [mm] |
C5 [mm] |
C6 [mm] |
H [mm] |
H1 [mm] |
L max. [mm] |
重量 [g] |
| NW01-17-L | 17 | 10.6 | / | / | / | 5.5 | 1.5 | 3000 | 150 |
| NW01-27-L | 27 | 17 | / | / | / | 9 | 4.4 | 3000 | 290 |
| NW01-40-L | 40 | 25 | / | / | / | 9 | 4.4 | 3000 | 450 |
| NWH01-17-L | 17 | 10.6 | 60 | 20 | 20-50 | 5.5 | 1.5 | 3000 | 150 |
| NWH01-27-L | 27 | 17 | 60 | 20 | 20-50 | 9 | 4.4 | 3000 | 290 |
| NWH01-40-L | 40 | 25 | 60 | 20 | 20-50 | 9 | 4.4 | 3000 | 450 |
